Two Dedicated 30-Amp Circuits in Vancouver, WA (Twist-Lock Outlets for High-Draw Gear)

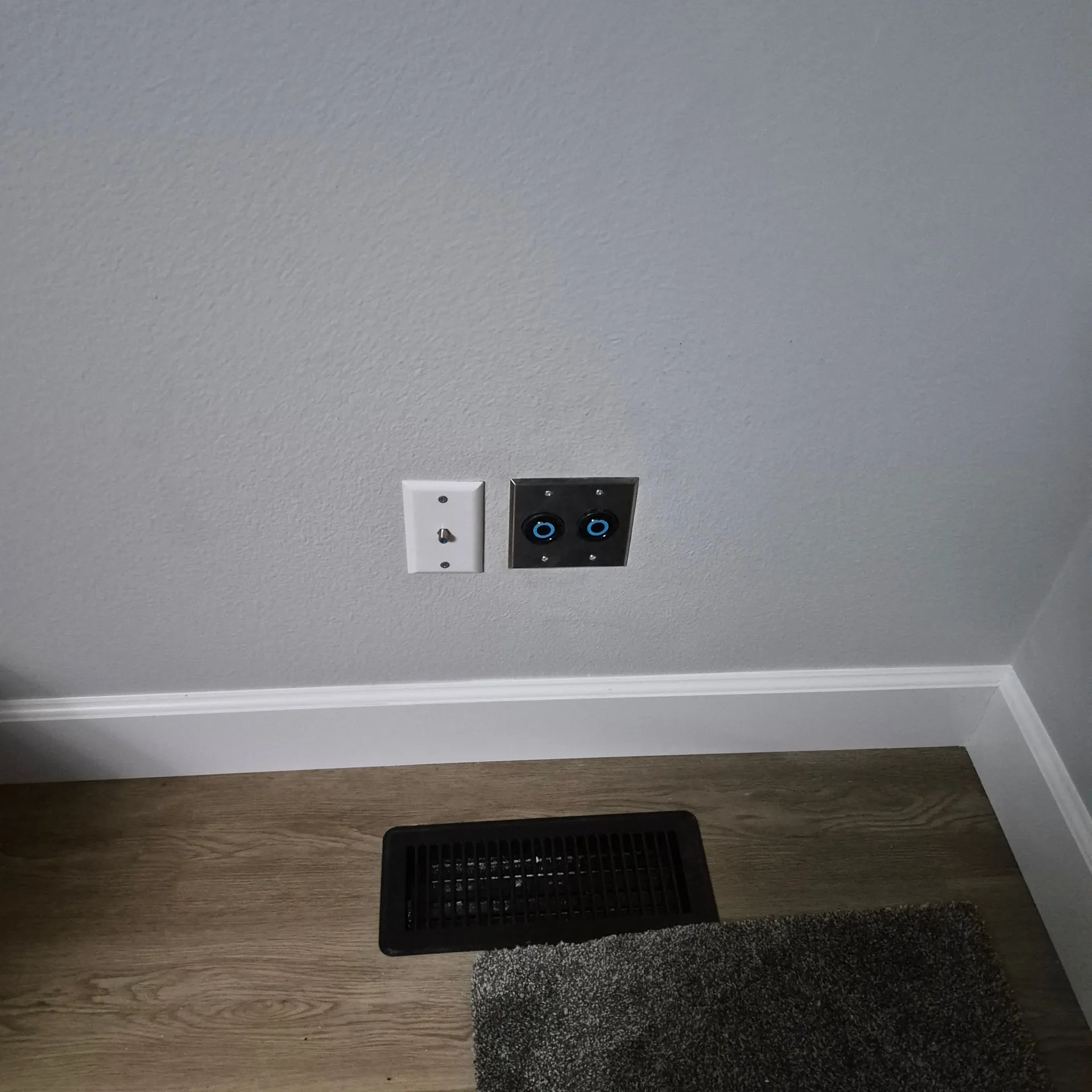

Newman Electric ran a pair of dedicated circuits for a home in Vancouver, WA. The homeowner needed two 30-amp, 240V outlets on a living-room wall for high-draw equipment, each on its own circuit so they never compete for power. Two clean runs, two twist-lock receptacles, and a little panel surgery to make it all fit.

Why high-draw gear gets its own circuit

When a single piece of equipment can pull near 30 amps, sharing a circuit with anything else is asking for nuisance trips and voltage sag. A dedicated circuit fixes that by design:

• The full breaker capacity is available to that one outlet, nothing else taps it
• No flicker or brownout when something else on the circuit kicks on
• A trip takes down only that device, not half the room

We landed two of them here, fully independent of each other. Each got its own breaker, its own home run, and its own twist-lock outlet so the cord physically locks in and cannot vibrate loose under load. That is the right call any time the equipment matters and the draw is real.

Making room in a panel that was already busy

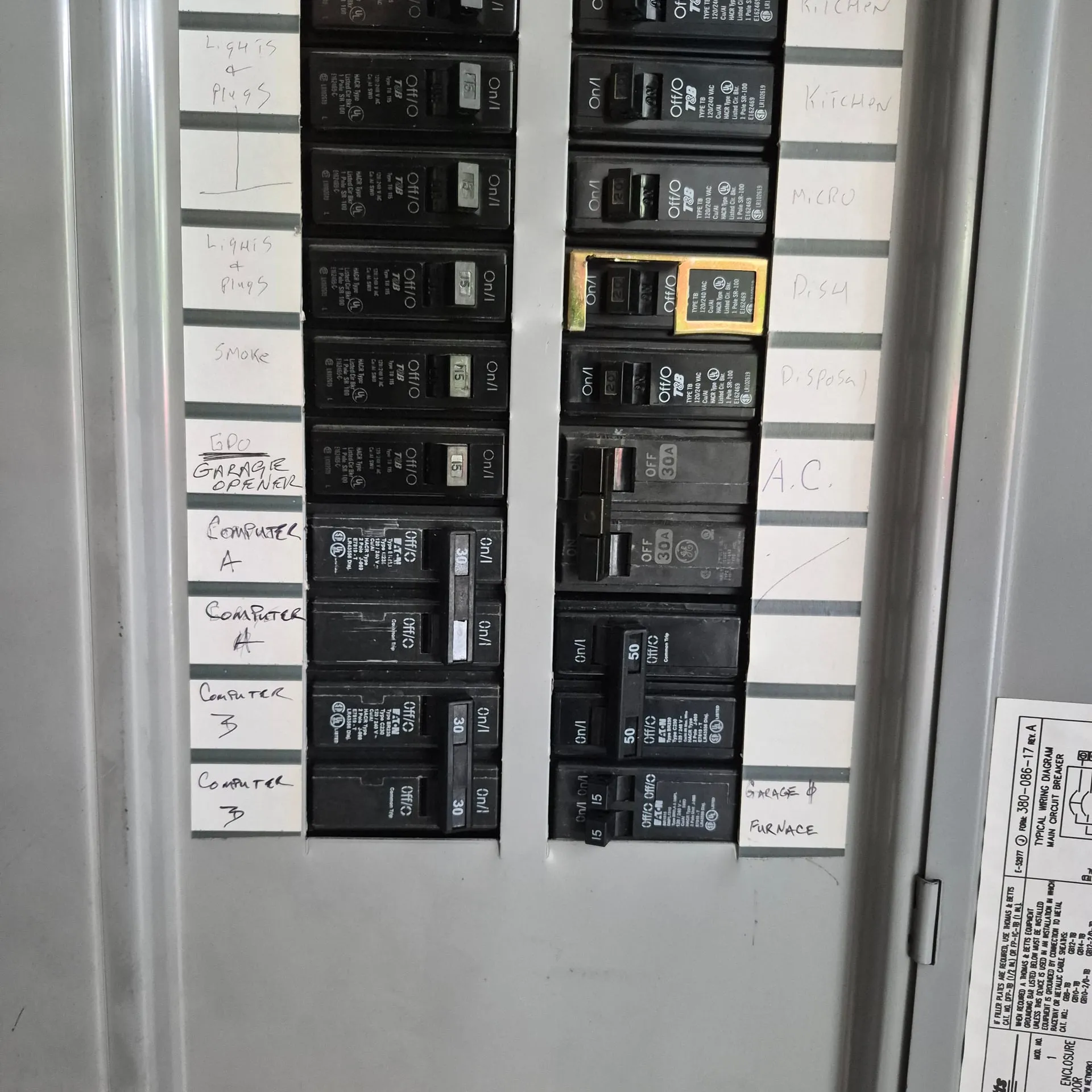

The catch on a job like this is rarely the run, it is the panel. This one was already well populated, so before we could add two double-pole 30-amp breakers we had to free up the spaces.

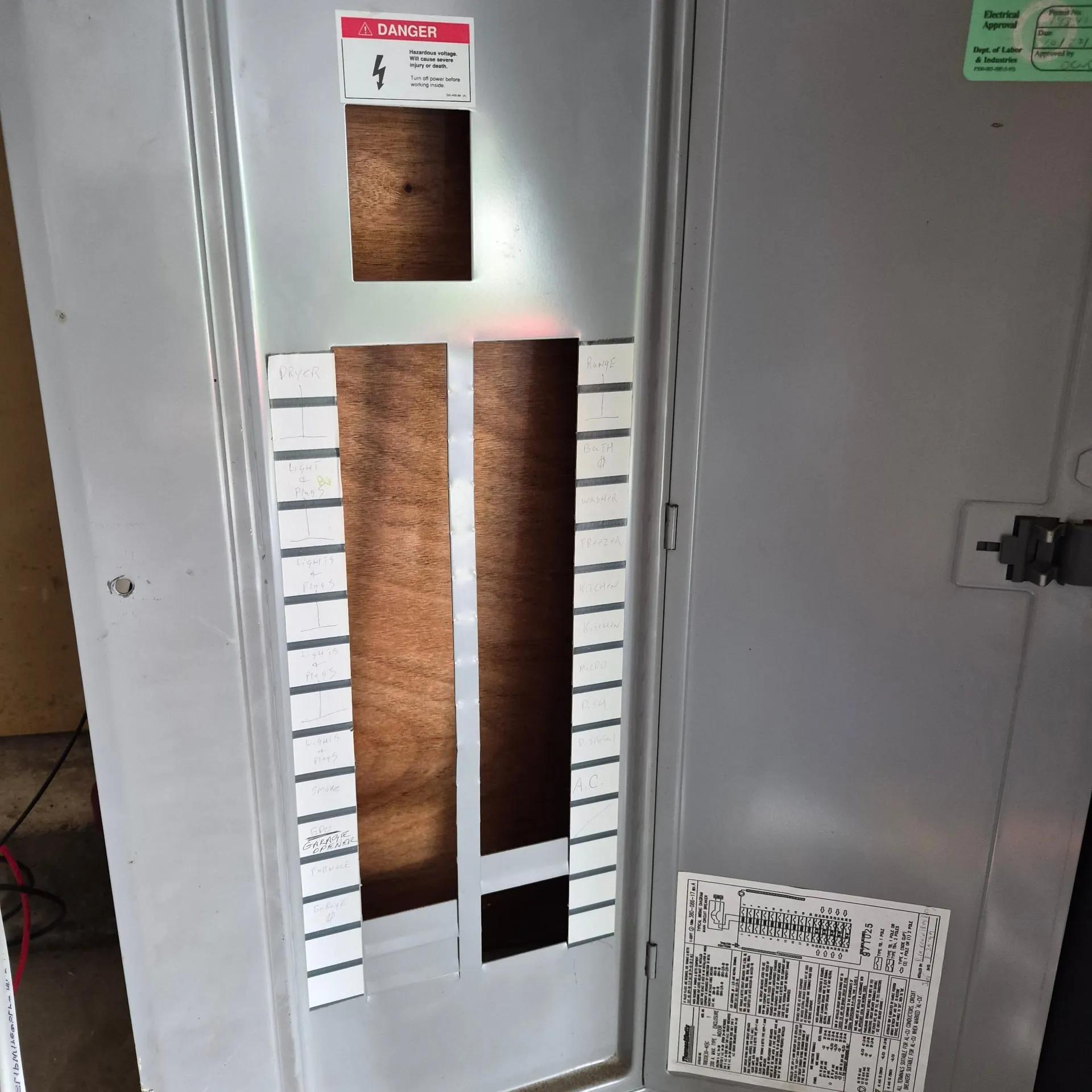

The fix was a tandem breaker: it lets two existing circuits share a single slot where the panel allows it, opening up the room for the new breakers without a sub-panel or a service upgrade. Done right and within the panel’s listed limits, it is a clean way to reclaim capacity. When a panel is genuinely out of room and tandems are not an option, that is a different conversation, and our guide to when a panel is genuinely out of room covers where that line is.

A tidy run, not a stapled afterthought

The two circuits ran about 40 feet back to the panel in 3/4-inch conduit. Putting the conductors in conduit keeps the runs protected and the install serviceable, and it means if the homeowner’s setup changes down the road, there is a clean path to pull new wire instead of opening walls. That is the difference between a dedicated circuit that was planned and one that was just barely made to work.
