Melted Outlet From an A/C Unit Replaced in Vancouver, WA

An A/C unit in this Vancouver home was plugged into an ordinary wall outlet, and eventually the outlet gave up. When Newman Electric pulled it, the receptacle was melted, its contacts scorched, and the cover plate and drywall around the box were stained with soot.

Why outlets melt under an A/C

An air conditioner draws a heavy current for hours at a time. That’s not a problem for a good connection, but it’s a big problem for a weak one.

Heat at an outlet comes from resistance at a connection, not from the load alone:

• A backstabbed wire (pushed into the hole on the back instead of wrapped on the screw) has a small contact area
• A worn receptacle whose contacts no longer grip the plug blades firmly
• A loose terminal screw that has worked free over years of heating and cooling

Under a long, heavy load, any of those gets hot, and the heat makes the connection worse. Eventually the plastic melts. Our post on a burning smell at an outlet covers the warning signs that come first.

The repair

With the power off at the outdoor Square D Homeline panel, we:

1. Removed the melted receptacle and the scorched plate
2. Checked the box and the conductors for heat damage
3. Trimmed back any heat-damaged conductor ends to clean copper

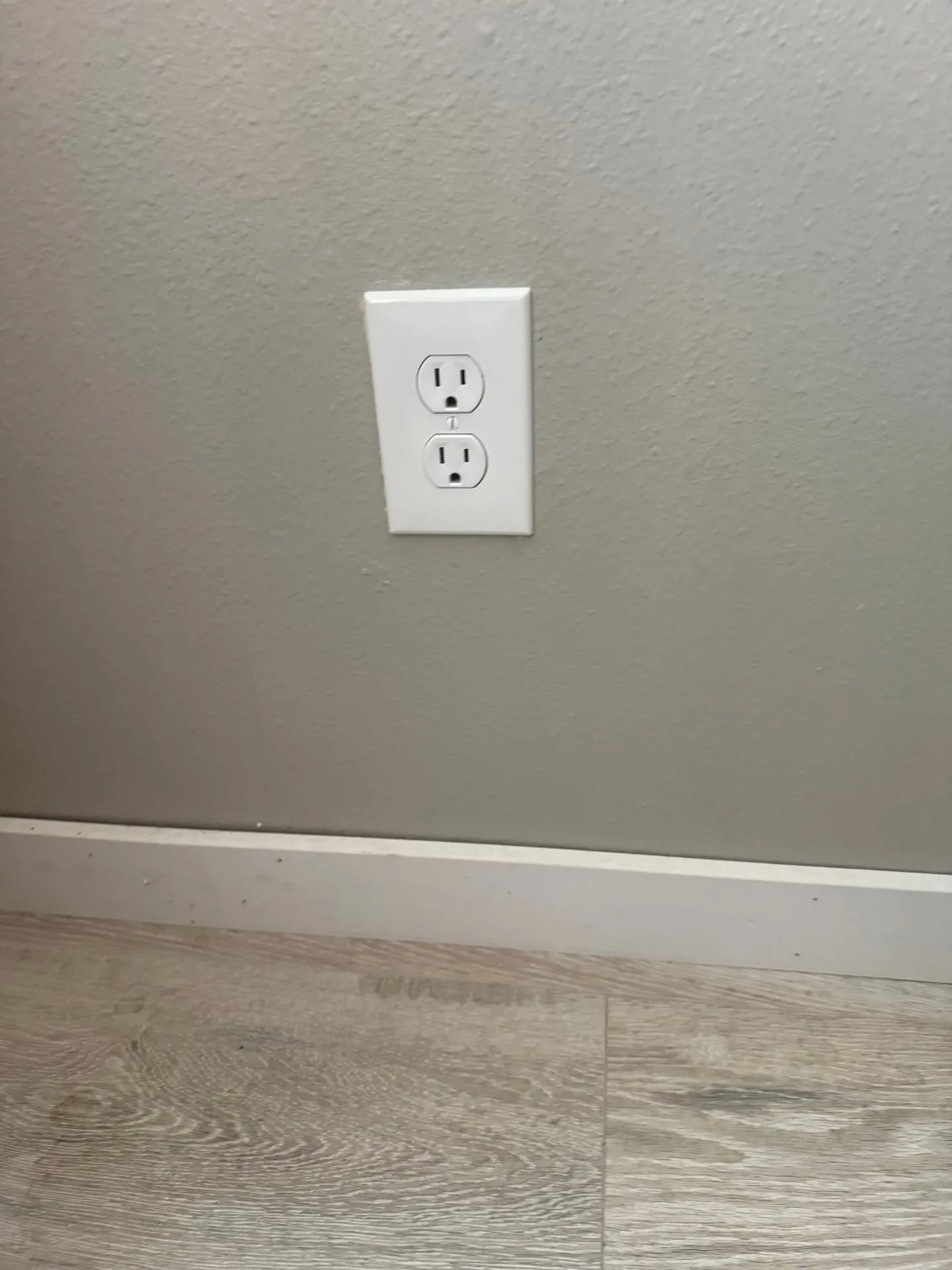

4. Installed a new receptacle with the conductors on the terminal screws, and a new plate

If heat damage runs further up the cable, the repair means replacing that section back to the next box, which is why we check before closing up.

If your A/C is on a regular outlet

A small A/C unit on a 15-amp general-use outlet is common and usually fine, as long as the outlet is in good shape and nothing else heavy shares the circuit. A larger unit, or one that trips breakers, is a sign it needs a dedicated circuit.
