A/C Condenser Electrical Hookup in Vancouver, WA (HVAC Partner, Orchards)
Electrical for HVAC partner Advantage Heating & Cooling's A/C changeout in the Orchards area of Vancouver: new 30-amp condenser circuit, an outdoor disconnect with a sealtight whip to the Daikin unit, and the furnace service receptacle, all on a Clark County permit so the install passed inspection.
Client
Advantage Heating & Cooling
Unit
Daikin condenser, 208/230V
Circuit
30-amp, 2-pole
Permit
Clark County
Scope of Work
- Electrical changeout for an HVAC contractor replacing an A/C condenser
- Landed a 30-amp, 2-pole condenser circuit sized to the Daikin nameplate
- Set an outdoor disconnect with a sealtight whip within sight of the unit
- Pulled the Clark County permit so the install passed inspection
When an HVAC company swaps out an air conditioner, the refrigerant and the ductwork are their job. The electrical that feeds it is ours. Newman Electric handled the wiring side of an A/C changeout for Advantage Heating & Cooling, an HVAC company we partner with, in the Orchards area of Vancouver, WA, scheduled for the morning their crew set the new unit so nobody waited on anybody.
Sizing the circuit to the nameplate, not a guess
The new condenser was a Daikin unit, and its nameplate is the spec sheet for the electrical:
- 208/230V, single phase
- Minimum circuit ampacity: 19.4A
- Maximum fuse / breaker: 30A

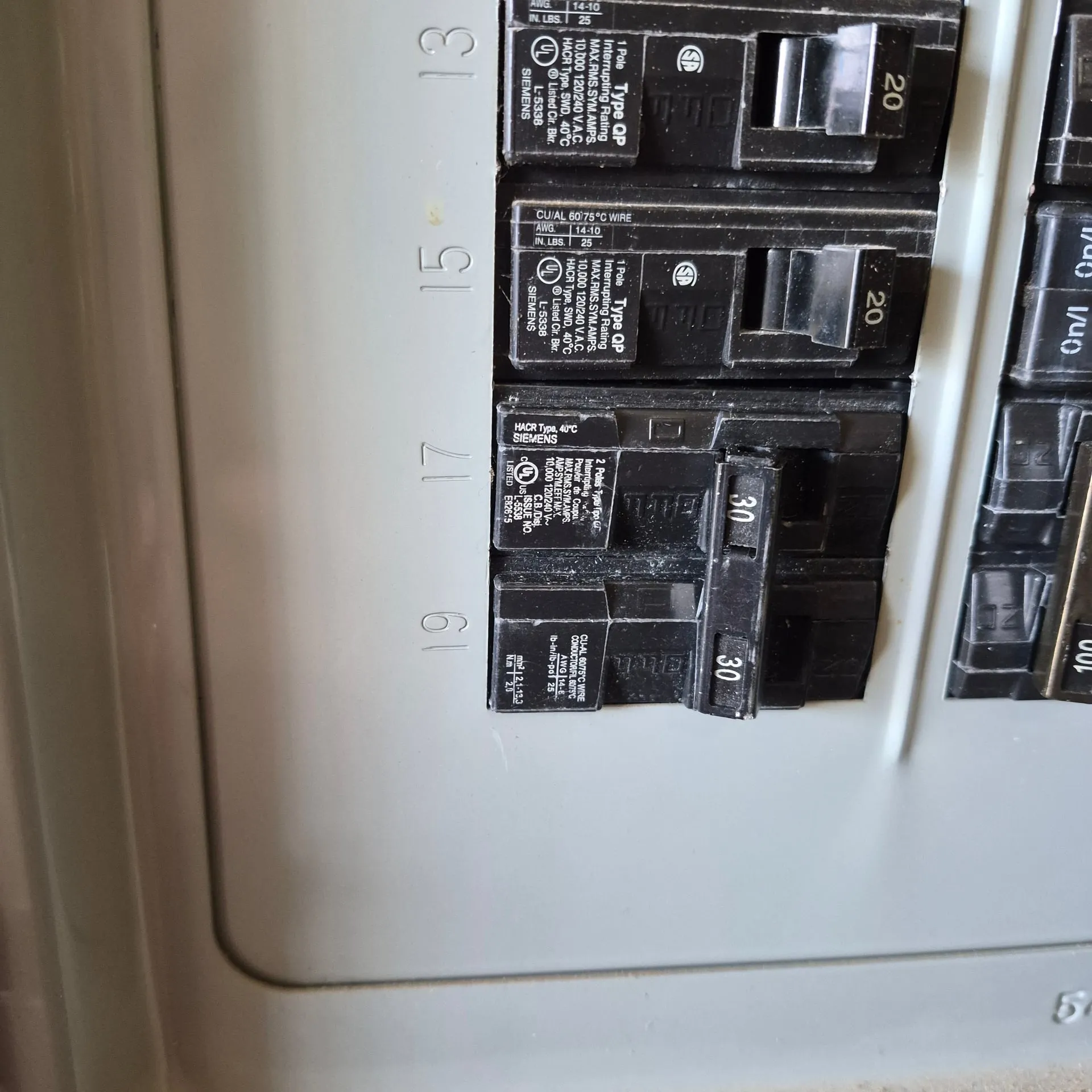

That tells us exactly what to land: a 30-amp, 2-pole breaker on #10 copper. Oversize the breaker and the conductors are no longer protected. Undersize it and it nuisance-trips on a hot day. The nameplate is not a suggestion, it is the rule, and matching it is the difference between an install that passes inspection and one that gets red-tagged.
The disconnect is a code requirement, not a nicety

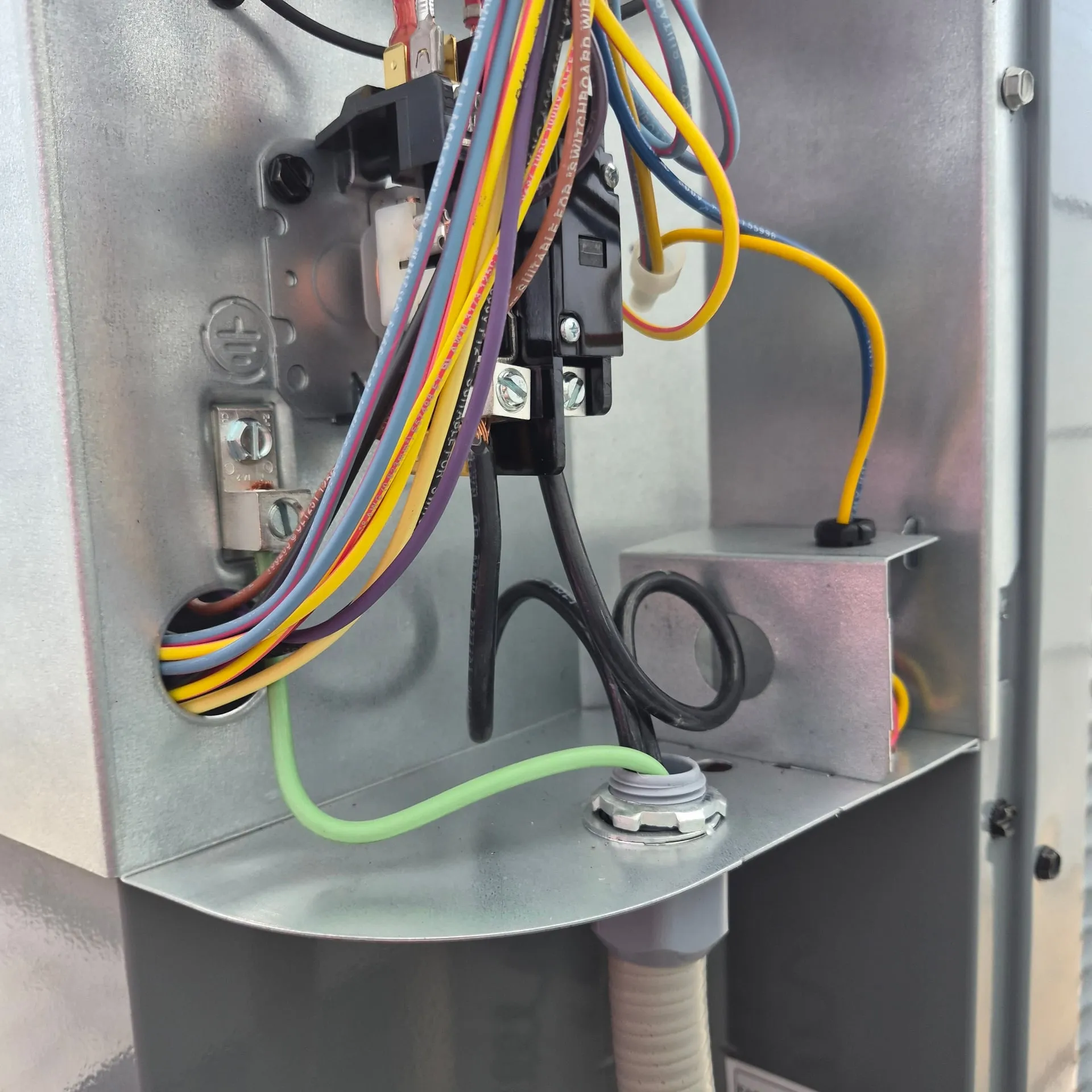

Outside at the unit, we set a weatherproof disconnect within sight of the condenser per NEC 440.14, fed with a flexible sealtight whip:
- The sealtight handles the vibration and weather at the unit without cracking conduit
- The in-sight disconnect means any tech can kill power at the equipment before servicing it
- Everything stays serviceable for the next person who works on it, HVAC or electrical

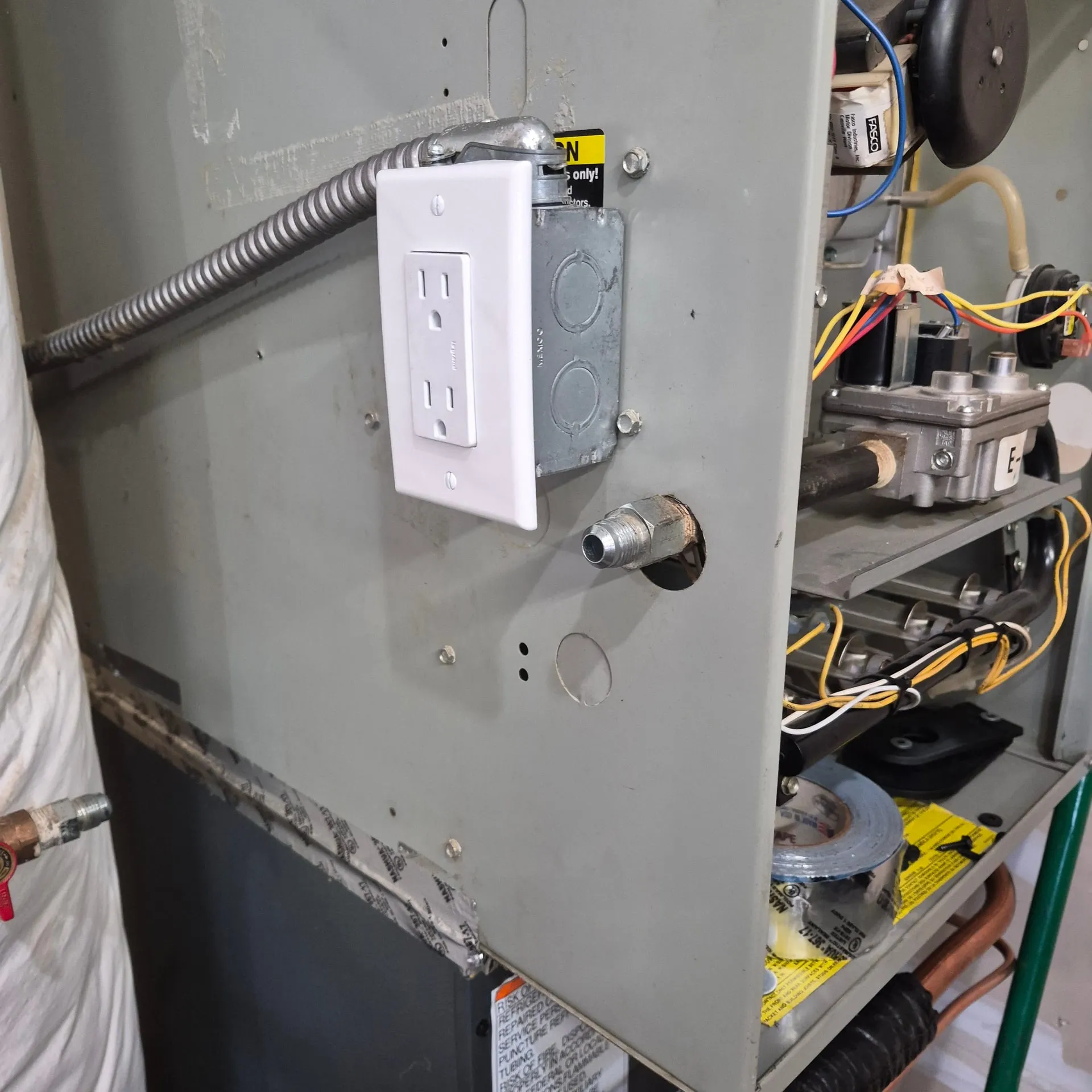

We also took care of the furnace service receptacle on the air handler, the GFCI-protected outlet that a service tech plugs into. Small detail, required by code, and easy to overlook if the electrician is not paying attention.
Why HVAC companies hand us the electrical
A heating and cooling crew can set a unit and charge it in a morning. What slows them down is the electrical: the right circuit, an in-sight disconnect, and a permit the county will actually sign off. That is exactly the heat pump and A/C condenser wiring we do, on the HVAC company’s schedule, with the permit pulled so their customer’s install is legal and inspected.
We pulled the Clark County permit on this one. For an HVAC partner, that is one less thing to chase, and it means the homeowner’s new system is documented and code-compliant from day one.
Run an HVAC company in Clark County and need a reliable electrician for changeouts and hookups? Call 360-828-7143 or line up the reconnect and we will work to your install schedule.
