21 Cat6 Drops Run to the IT Rack in a Vancouver, WA Office

An office runs on its network long before anyone notices the lighting. This tenant improvement inside Vancouver city limits needed up to 21 Cat6 drops pulled from workstation positions back to the IT rack, and Newman Electric ran and terminated all of them as part of the commercial data cabling scope.

Why an electrician runs the data too

Low voltage and power are different trades in theory and the same trip in practice. Having one contractor do both on a tenant improvement avoids the failure that costs the most:

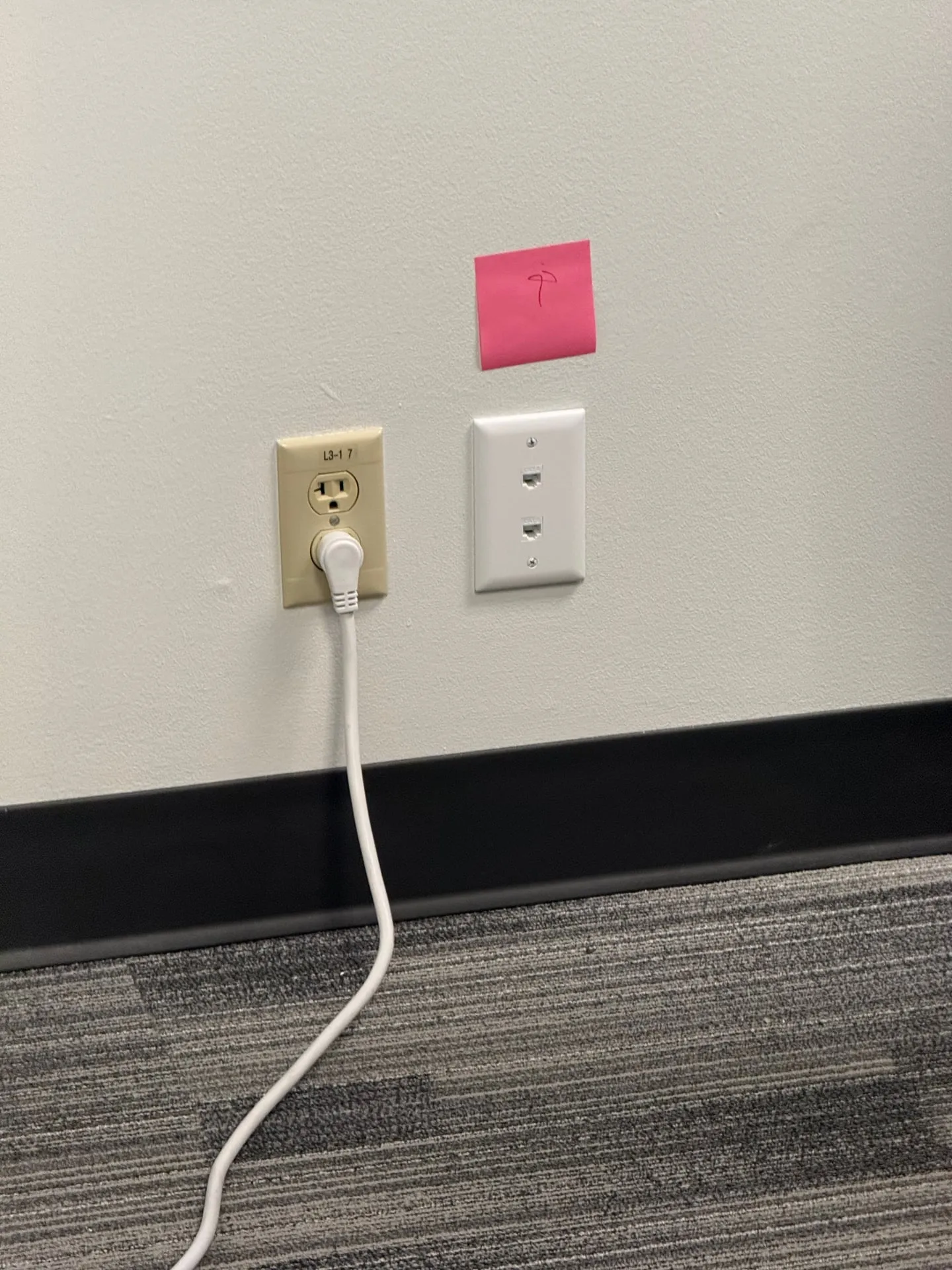

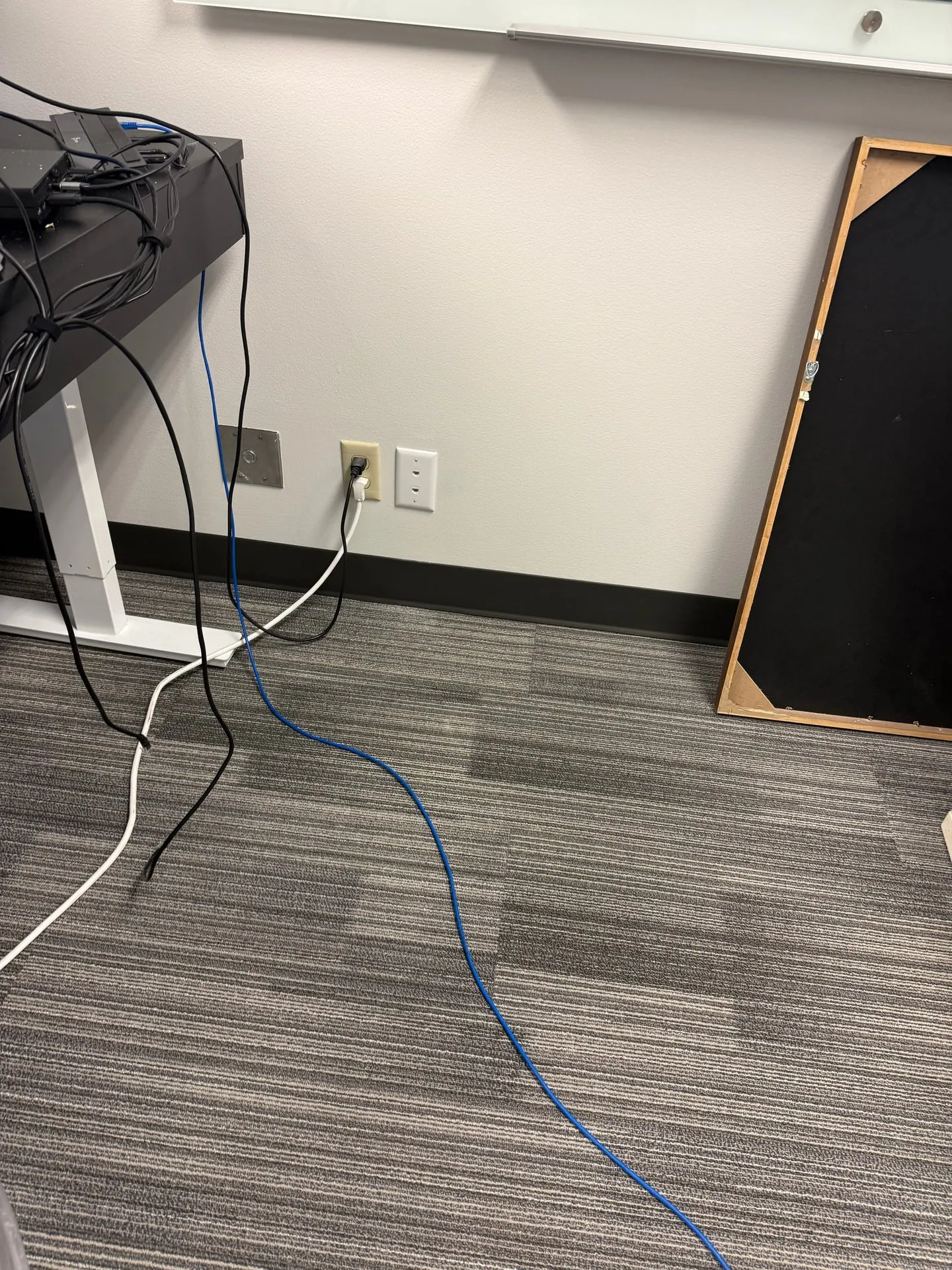

• The drops land where the desks actually are, because whoever set the receptacle positions also set the jacks
• Separation gets respected. Data and power running parallel in close proximity is how you get noise on a run, and knowing the required separation is part of the job
• The ceiling gets opened once. Two trades pulling through the same grid on different days is twice the disruption to a working office

Terminating both ends is most of the labour

Pulling cable is the part people picture. Terminating it is the part that takes the day.

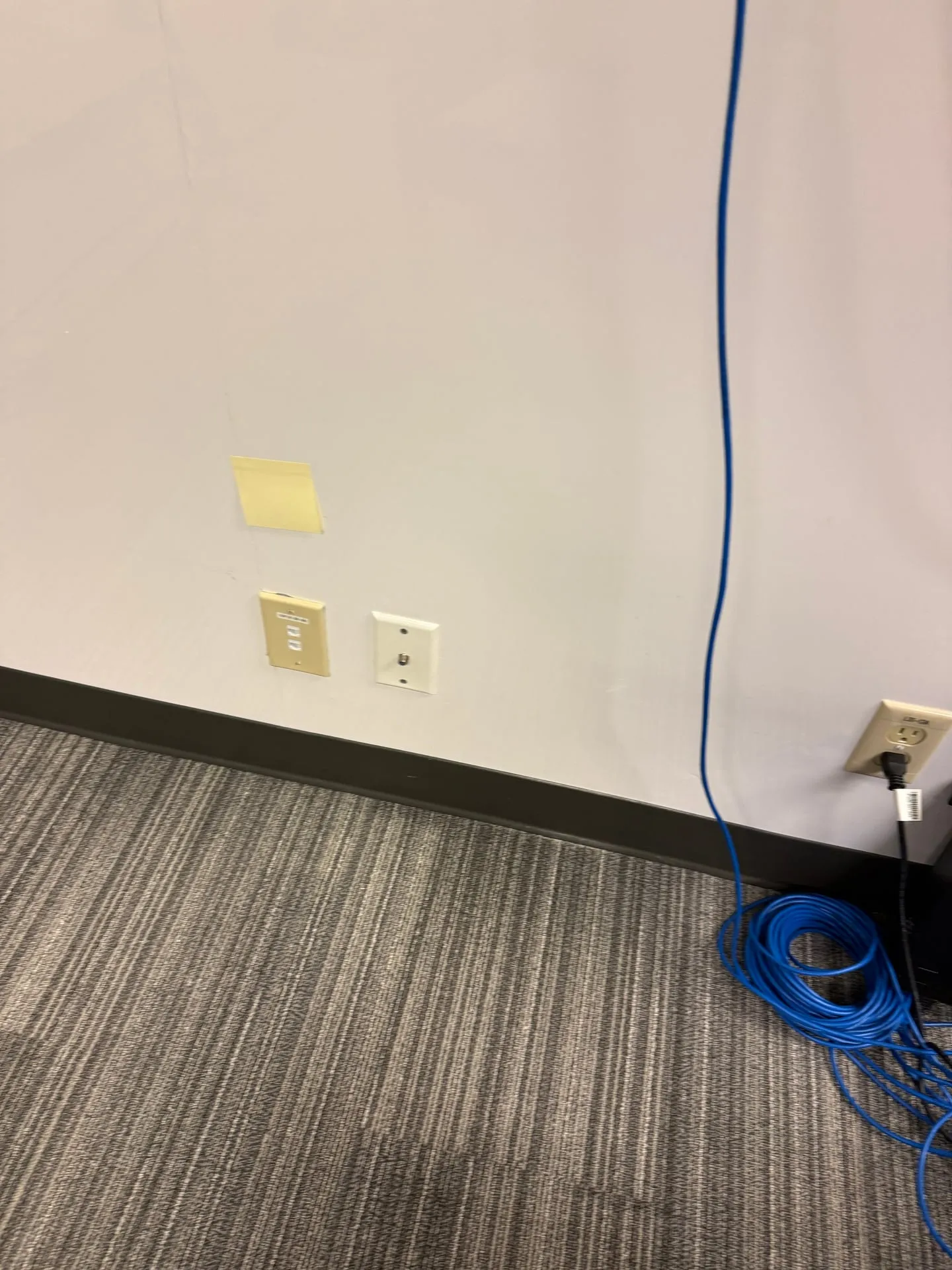

Each of these runs is landed twice: once at a jack in the wall at the workstation, and once at the rack. Both ends have to keep the pair twist right up to the termination point, both have to be punched to the same standard, and both have to be tested.

Twenty-one runs is forty-two terminations, and a single sloppy one produces a drop that works at a hundred megabits and nobody understands why.

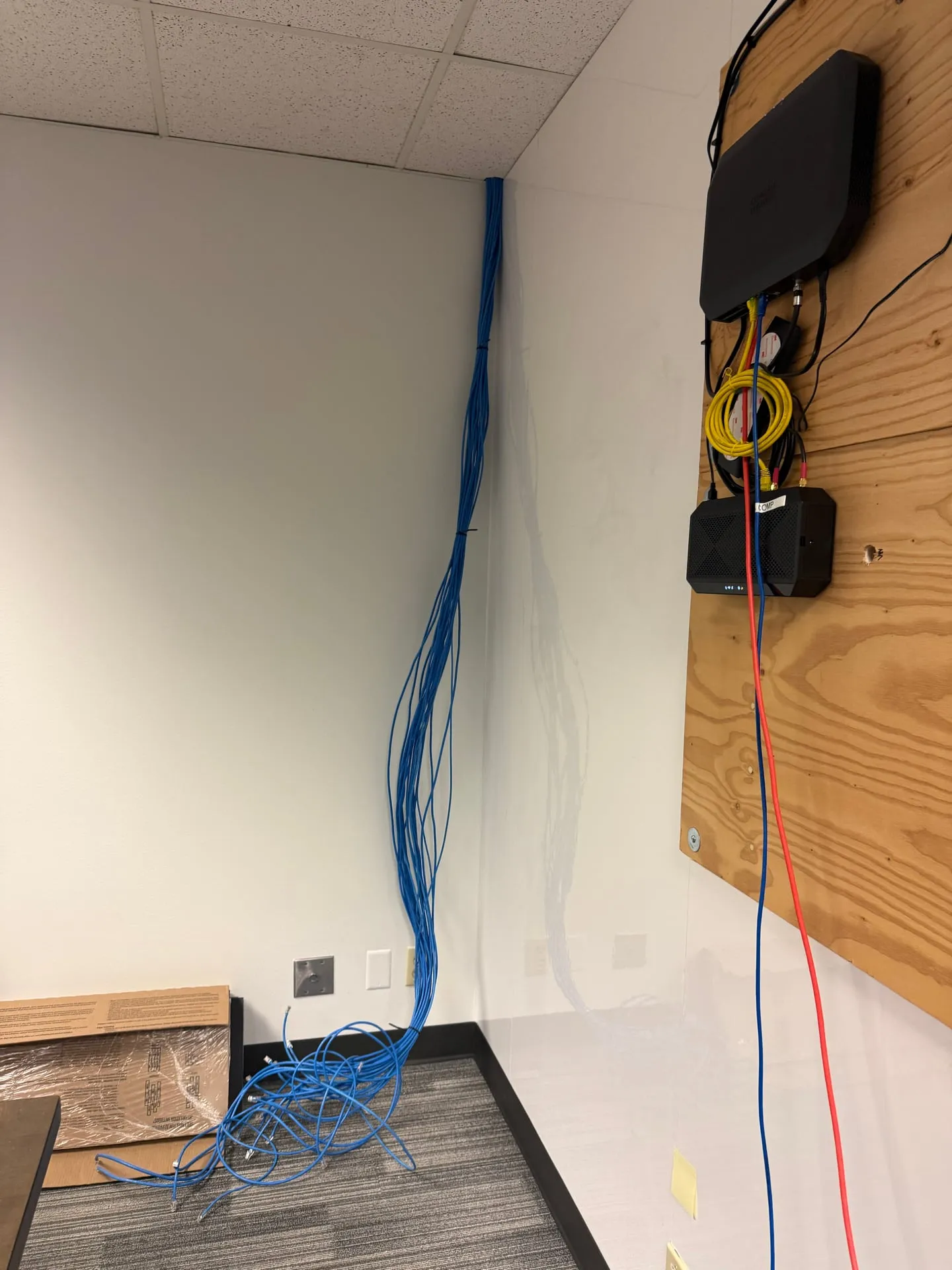

The rack end is where discipline shows

The photograph at the rack backboard is the honest test of a cabling job. Bundles that arrive dressed, supported and in a predictable order can be traced by whoever manages that network next year. Bundles that arrive as a bird’s nest cannot, no matter how well each individual run was pulled.

That is the difference between cable that was installed and cable that was merely delivered, and it applies to tenant improvement work generally: the finished space is judged on the parts nobody looks at.

Permit, on a low voltage job

This went in under a City of Vancouver electrical permit. Commercial low voltage is permitted work in Washington, and on a tenant improvement it is also the thing the landlord and the next tenant will ask about.

For anyone budgeting one of these: the cost is genuinely per-run, because each run is its own pull, its own two terminations, and its own test.
