Double-Tapped Breakers and a Floating Neutral Bar Fixed in Brush Prairie, WA

Most of the value in this Brush Prairie job is invisible in the finished house. The visible half was a cooktop circuit, bidet power and network drops. The half that mattered was a panel with double-tapped breakers and a neutral bar that was not bonded down. Newman Electric fixed both, and did the rest while the panel was already open.

What double-tapping actually is, and why it is a problem

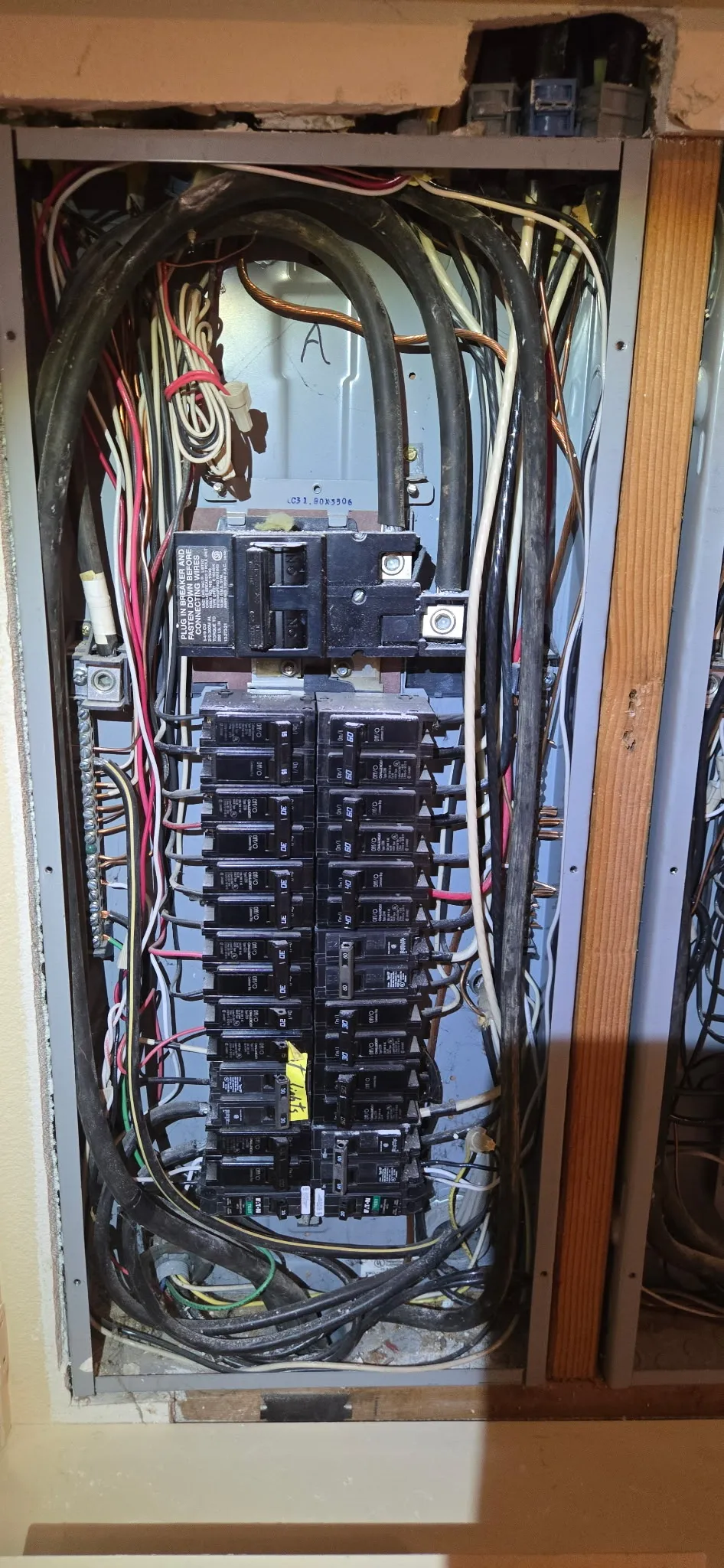

A double-tapped breaker is two conductors landed under one breaker lug that was designed and listed for a single conductor.

It is one of the most common findings on a home inspection, and it is common because it is easy. The panel is full, someone needs one more circuit, and there is a screw right there that will physically close on two wires.

The problem is mechanical:

• The lug cannot clamp both conductors evenly. One is held properly and the other is held loosely, or both are held marginally.
• A loose termination heats up. That is the failure mode: not a dramatic short, but a connection that warms, oxidises, warms more, and eventually chars the breaker and the bus behind it.
• Neither circuit is properly protected. You now have two circuits behind one overcurrent device that was sized for one of them.

The fix is not exotic. Each conductor gets its own breaker, or the two get joined properly ahead of the breaker in a way the equipment is listed for. It is worth having a look at any panel that has ever been added to, which is most of what panel work actually involves.

The floating neutral bar

The other correction was a neutral bar that was not properly secured and bonded.

In a main panel the neutral and ground are bonded together at exactly one point, and the neutral bar has to be solidly connected to the enclosure. A bar that is loose or unbonded means the return path for every circuit in the house is relying on a connection nobody has verified. Symptoms range from nothing at all, to flickering lights, to voltage showing up where it should not be.

That is a correction that costs an hour and quietly removes a whole category of future problem.

The list that came with it

With the panel open and the permit pulled, the rest of the punch list went in on the same visit:

1. A 50-amp dedicated circuit for a new cooktop
2. Dedicated circuits for a smart toilet and a bidet, which are appliances now and need to be treated as such
3. Five Cat6 runs through the house

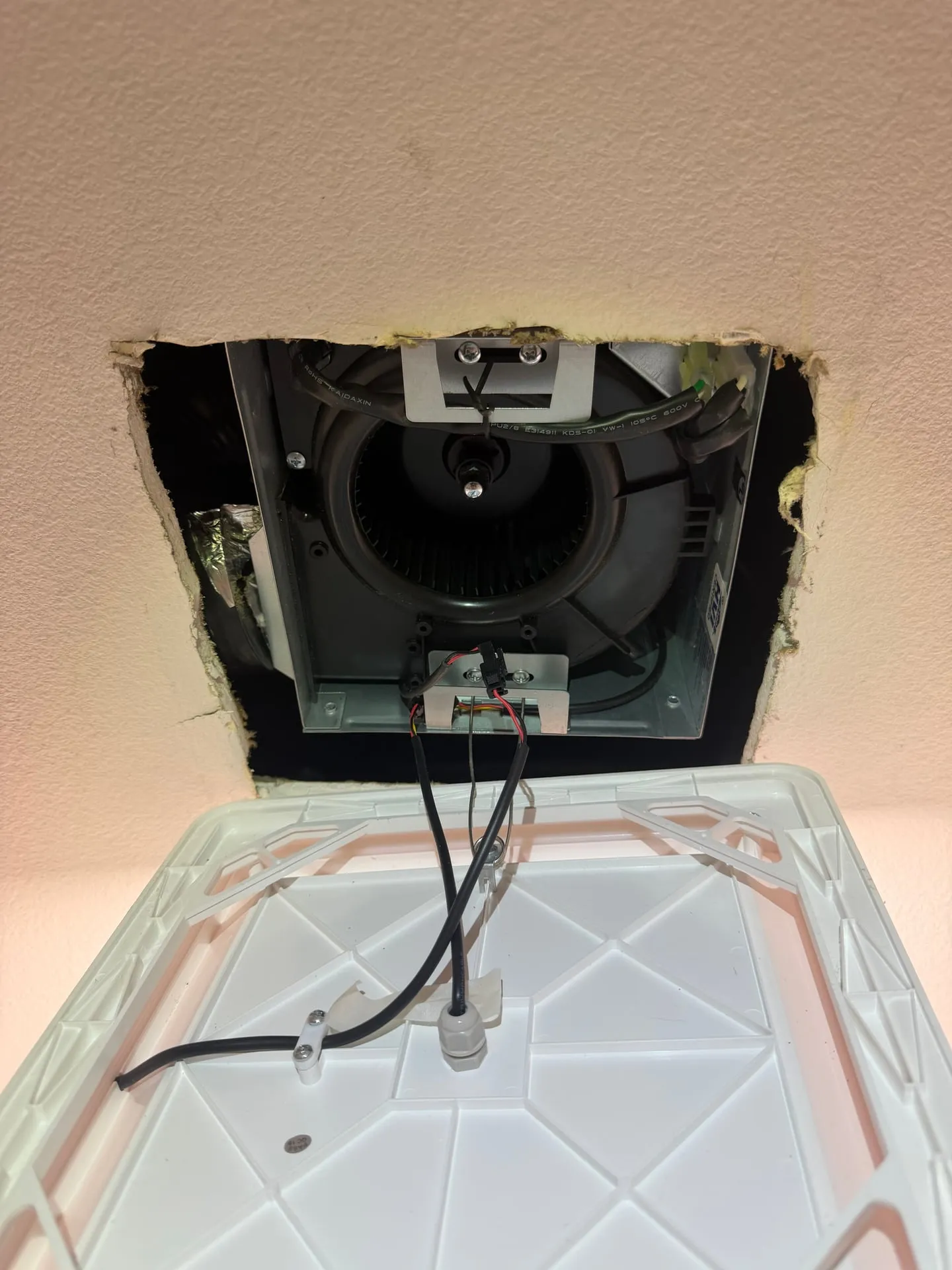

4. Two customer-supplied bath fans installed, and a light added in the attic
5. Four GFCI receptacles added where they were missing

This is the shape of a lot of good electrical work: one genuine safety correction, and a dozen small things that were easier to do while somebody competent was already there. Our guide to when a panel needs attention covers the warning signs.
