Panel Swap Plus Dedicated Sump Pump Circuits in Kalama, WA

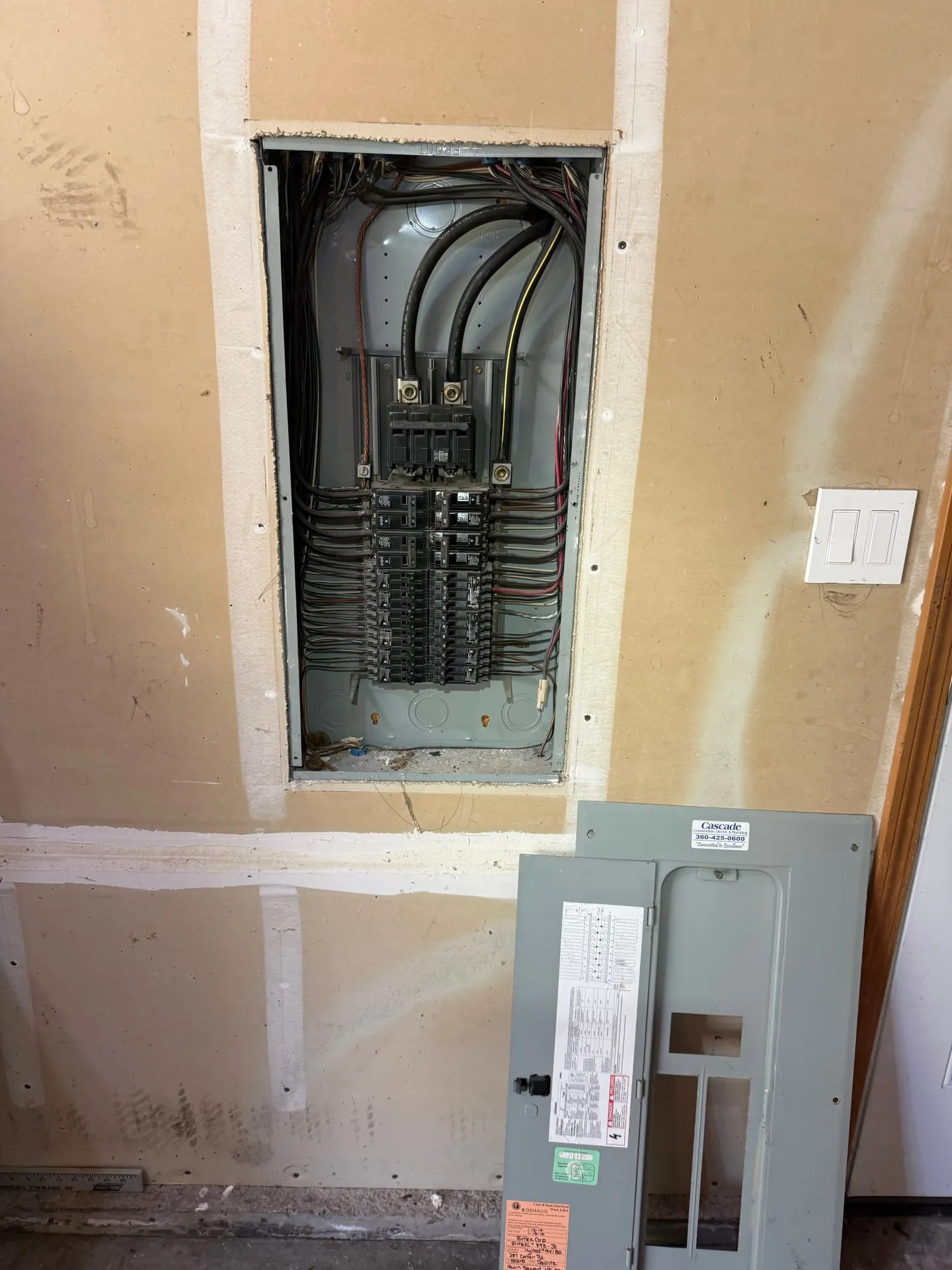

A panel swap is the cheapest moment to add anything. On this home in Cowlitz County the original 30/60 load center came out, and while it was open Newman Electric ran two dedicated 20-amp outlets for sump pumps rather than leaving that for a second visit.

Why a sump pump wants a circuit of its own

A sump pump is the appliance you find out about at the worst possible time. It runs unattended, it runs hardest when the weather is worst, and nobody is watching the breaker when it matters.

Sharing a circuit with anything else creates the exact failure mode you cannot afford:

• A tripped breaker takes the pump down silently. The garage freezer trips the circuit, and the pump has been off for a day before anyone notices water.
• Motor start current is a real load. A pump starting against a full basin draws far more than its running rating, and that inrush on a shared circuit is what causes nuisance tripping.
• Two pumps on one circuit defeats the point. If there is a primary and a backup, putting both on the same breaker means one fault takes out both.

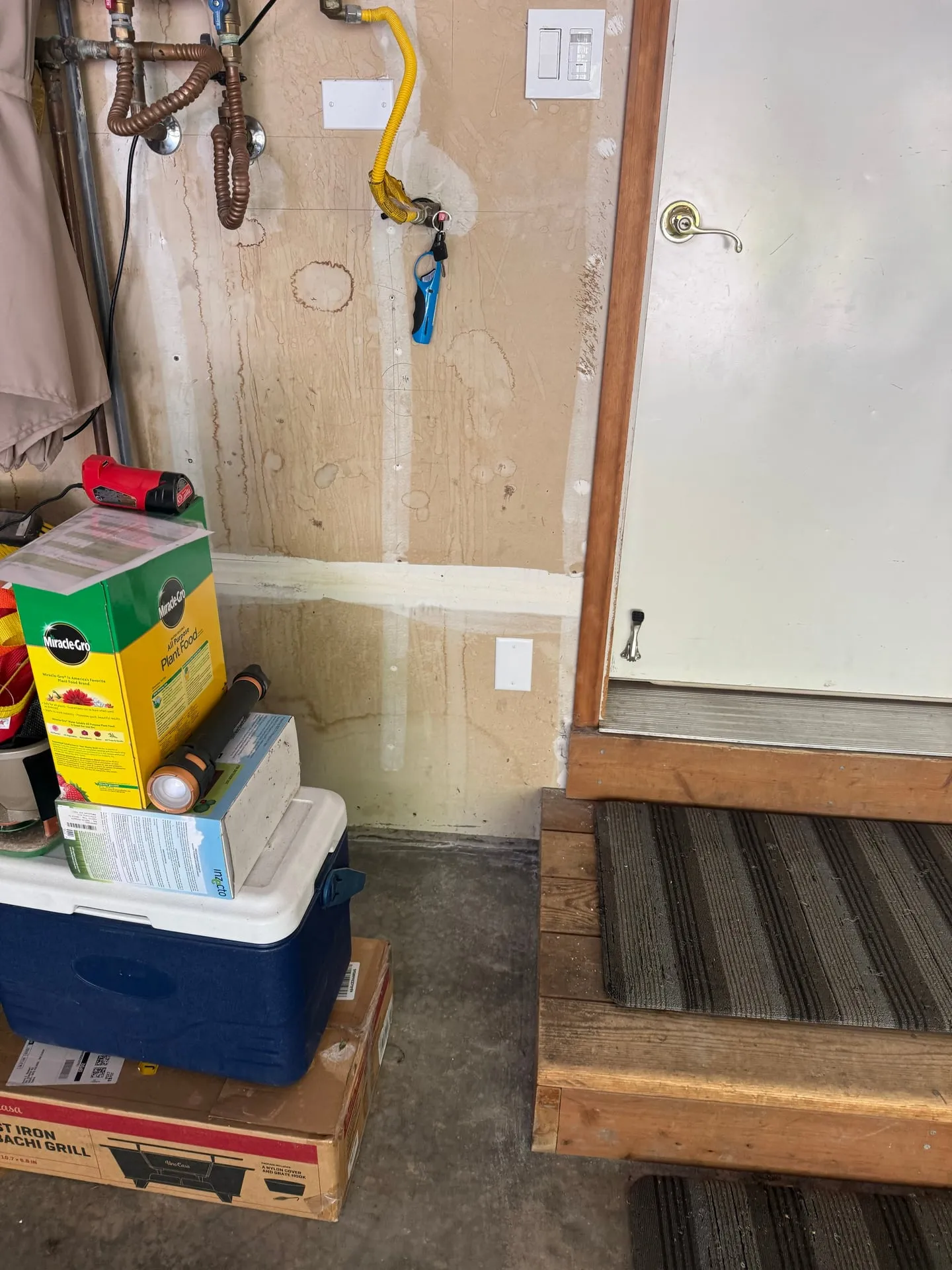

That is why each pump got its own 20-amp outlet on its own breaker. It is the same reasoning behind a dedicated sump pump circuit anywhere else: the load is small, the consequence of losing it is not.

Doing it during the swap, not after

The two circuits went in during the panel replacement, and the timing is most of the value.

The panel was already de-energized, already open, and the breakers were already going in fresh. Adding two circuits at that moment is labour that is largely already being spent. Coming back in six months means another shutdown, another dead front off, and paying for the access twice.

The same goes for the surge protective device that went in at the top of the bus. It is a small line item during a like-for-like panel replacement and an awkward one afterwards.

A 30/60 is a real constraint, not just an old label

The 30/60 designation describes how many circuits the panel could physically hold. On a rural property that number tends to be the binding limit long before the service size is: shop circuits, well controls, outbuildings, freezers, and now sump pumps all want their own space.

Replacing the panel with room to grow is what makes the next addition a small job instead of a subpanel conversation.
