Three New Circuits for Going Electric in Vancouver, WA

Electrification usually arrives one appliance at a time and one service call at a time. This household in Vancouver, Washington did the sensible thing and had all three circuits run in a single visit: water heater, EV charger, and induction cooktop.

Why doing them together is cheaper than doing them in sequence

Each of these is a modest job on its own. Together they share almost all of the expensive parts:

• One trip, one setup, one panel opening. The dead front comes off once.
• One attic entry. Two of the three runs went through the attic, and being up there once instead of twice is most of the labour saved.
• One load calculation. Adding three large loads to a service means checking the whole picture rather than three separate what-ifs.
• One permit and one inspection, rather than three of each.

The last point is the one that surprises people. Sequencing electrification over three years is not just three times the mobilisation, it is three times the paperwork.

The load calculation is the real work

Anyone can land a breaker. The question that matters is whether the service can carry a water heater, a cooktop and a car charger on top of everything already there.

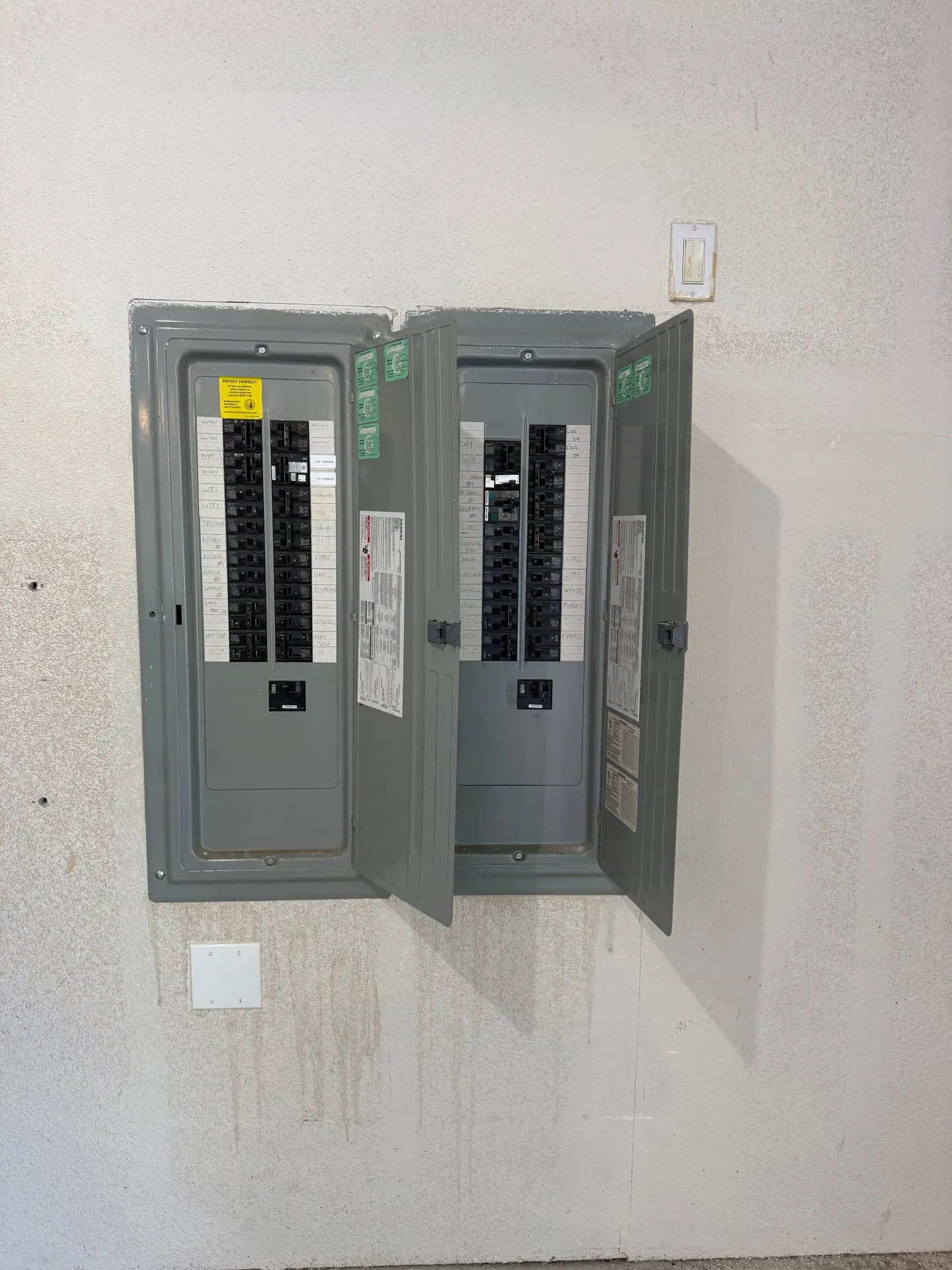

That is where a main panel plus an existing sub panel helps, and this house had both. Splitting new loads sensibly between them keeps individual busses from being overloaded and often avoids a service upgrade that a single-panel house would have needed.

If the numbers had not worked, the honest answer is a service upgrade first, which is why we look at circuits for electric appliances and panel capacity as one question rather than two.

Induction is the one people underestimate

A gas cooktop needs a receptacle for its igniter. An induction cooktop needs a circuit sized up to 50 amps.

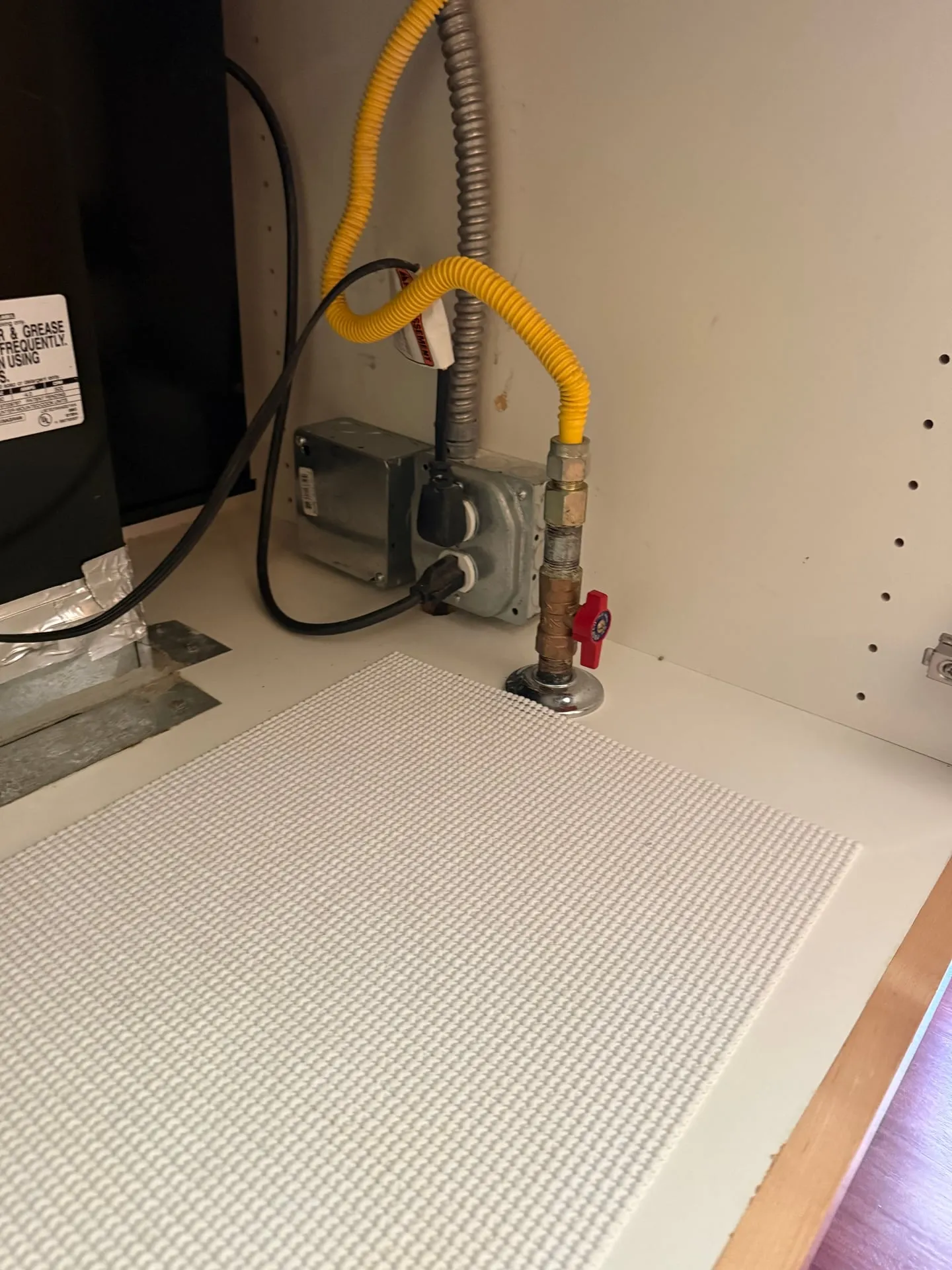

That is the single biggest electrical jump in a gas-to-electric kitchen conversion, and it is very often discovered after the appliance has been ordered. The photograph under the counter tells the story: the gas line still there, and the new circuit landed beside it, ready for the changeover. Our explainer on 240-volt appliance circuits explained covers how these are sized.

The EV charger is the easy one

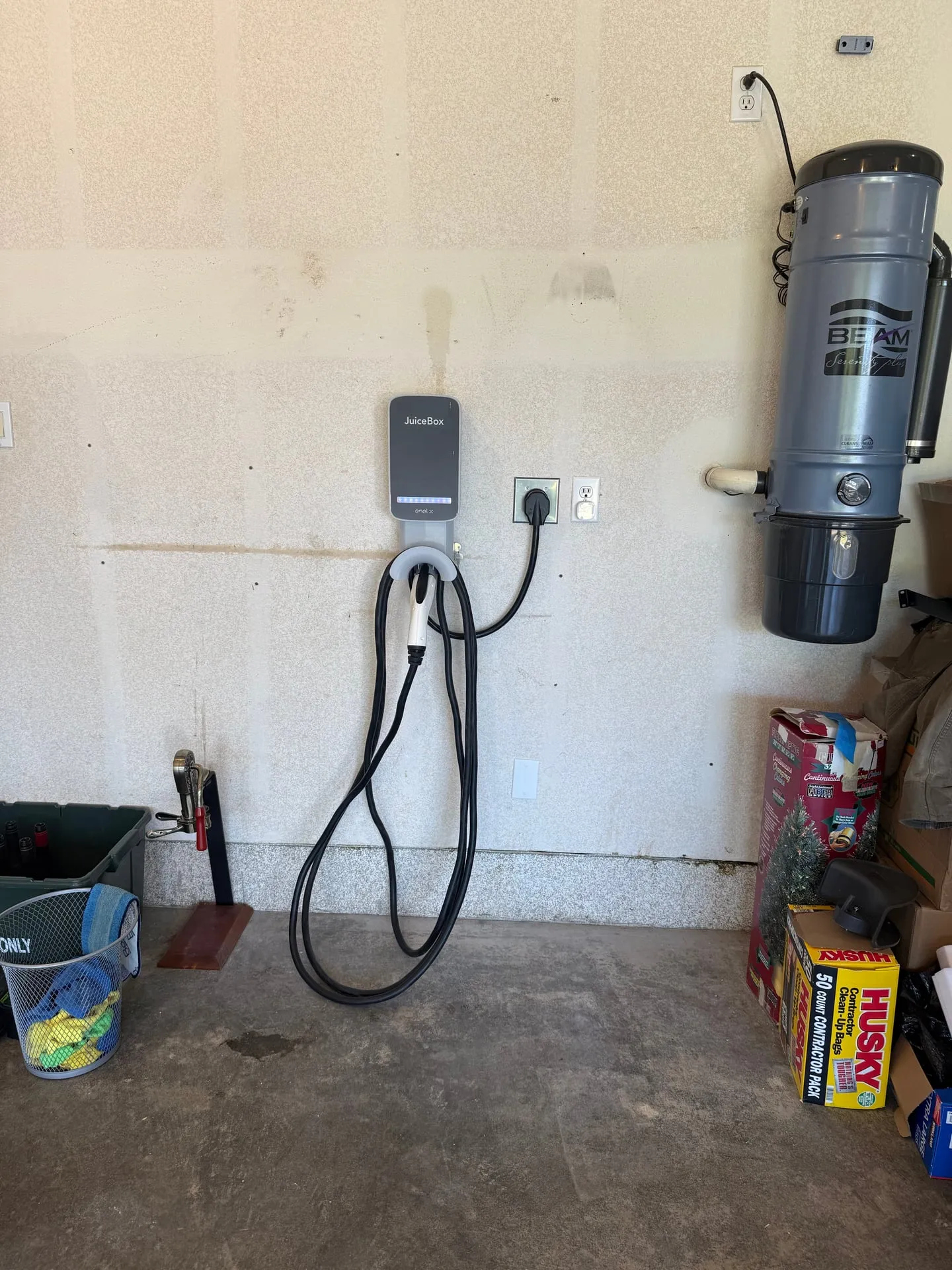

With the panel already open and the garage right there, an EV charger circuit was the least complicated part of the day. The charger went on the garage wall where the car actually parks, and the circuit came off the panel a few feet away.

Charger installs are cheap when the panel is close and the capacity is there. They get expensive when neither is true, which is exactly why it is worth doing while an electrician is already in the panel for something else.
