EVIQO Charger Across the Garage From the Panel in Vancouver, WA

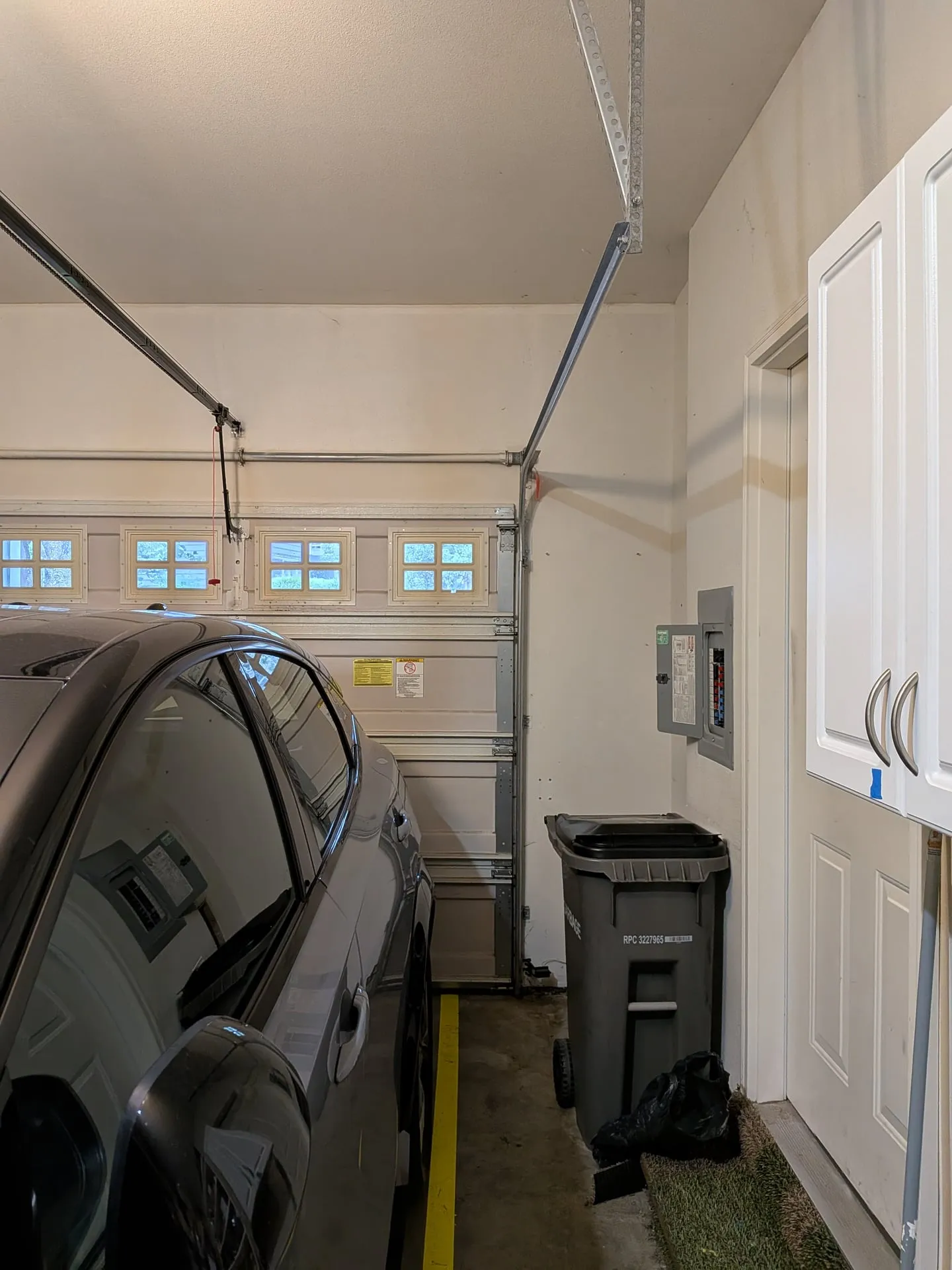

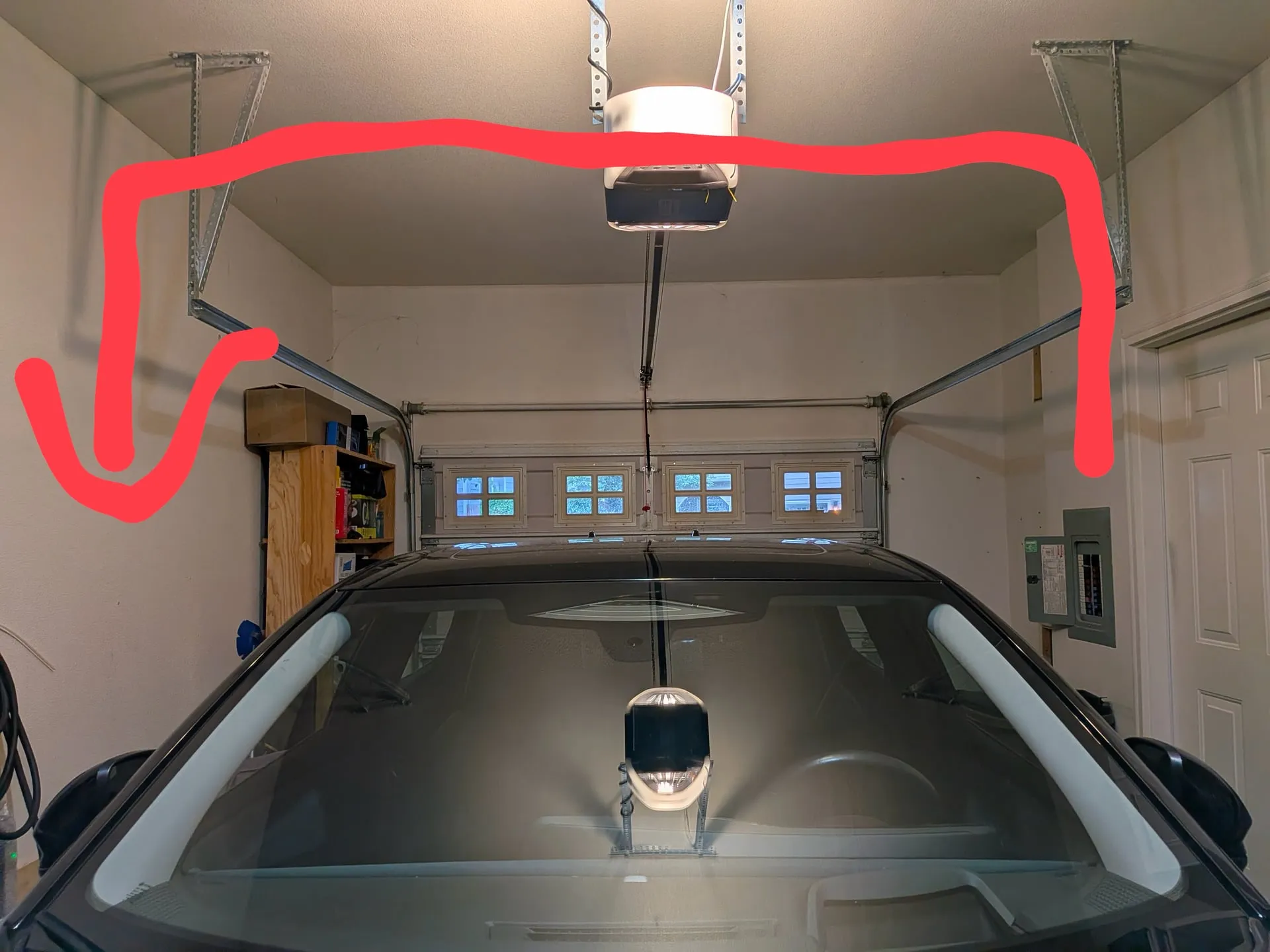

The panel in this Vancouver garage sat on the narrow side next to a cabinet, and the car parks on the opposite wall. The homeowner sent photos with the route drawn in red across the ceiling. Newman Electric ran it that way in EMT conduit and hardwired an EVIQO Level 2 charger right where the cable reaches the charge port.

Why not just put the charger by the panel

The cheapest charger install puts the unit right beside the panel, and when the parking layout allows it, that’s what we recommend. Here it didn’t. A charger by the panel would have meant a cord stretched across the garage floor or the car parked backwards every night.

Moving the charger to where the car actually sits costs a longer run, but it’s a one-time cost, and our guide to choosing a home charger and where it goes walks through that tradeoff.

Why EMT across the ceiling

Exposed cable stapled across a garage ceiling is legal in some spots and a bad idea in most. EMT is:

• Physically protected, which matters near a garage door track and opener
• Clean to look at, with straight runs and strapped supports
• Easy to rewire if the next car needs a bigger circuit

At the charger end, the EMT drops down the wall and transitions to a short flexible metal whip into the bottom of the unit, which gives a little slack for mounting and service.

The hardwired install

The EVIQO is hardwired on a dedicated 240-volt circuit sized to its rating, rather than plugged into a NEMA 14-50. Hardwiring avoids the heat problems that cheap receptacles develop under hours of continuous charging. The cable hangs on its holster beside the unit, clear of the floor.

More examples are in our EV charger installation in Vancouver section. If your panel and your parking spot are on opposite sides of the garage, call 360-828-7143 or send us a photo with the route drawn on it, the same way this homeowner did.
