ChargePoint Hardwired Next to the Panel in Camas, WA (44 Minutes)

Forty-four minutes on site. That is what an EV charger install costs in labour when the panel has capacity and the charger goes on the wall next to it. This one in Camas, Washington is worth publishing precisely because nothing went wrong.

What makes an install cheap

Every EV charger quote comes down to the same three questions, and this house answered all three the easy way:

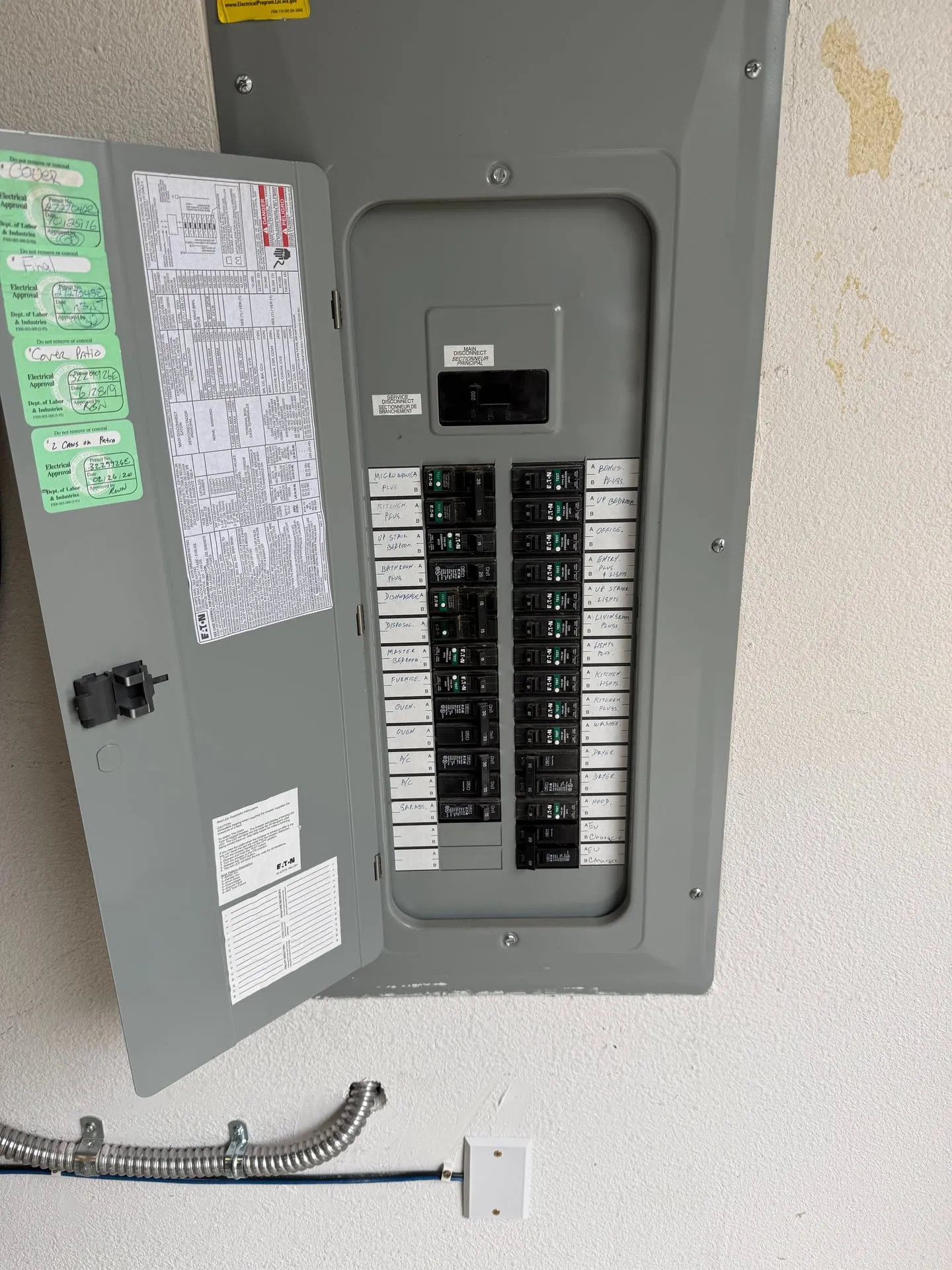

1. Is there capacity in the panel? Yes, with an open space for a two-pole breaker and enough service to carry the load.

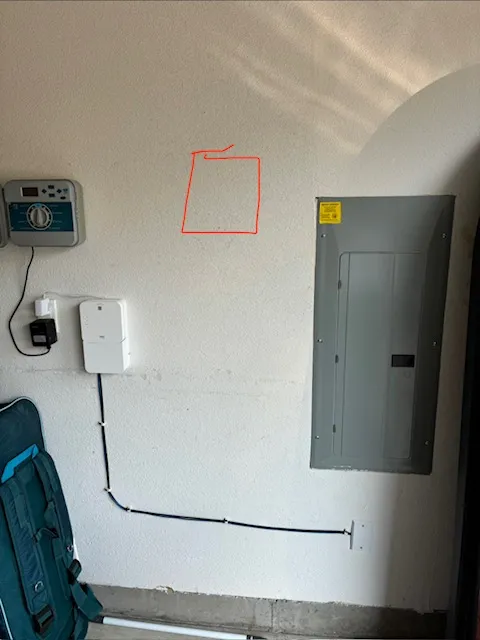

2. How far is the charger from the panel? A few feet, on the same wall.
3. Does the run cross anything? No. No attic, no crawl space, no finished wall to fish, no trench.

Change any one of those and the number moves. A charger on the far garage wall means conduit across the ceiling. A full panel means a subpanel or a service upgrade. A detached garage means a trench.

That is the honest answer to why EV charger installation quotes vary so widely for what looks like the same job, and our cost breakdown for a home EV charger in Clark County walks through the variables.

Hardwired, not plug-in

The ChargePoint went in hardwired rather than on a 14-50 receptacle.

Hardwiring is the better choice when the charger is staying put:

• No receptacle to fail. A 14-50 carrying 40 amps continuously for hours is one of the most common failure points in a home EV setup, and a cheap receptacle will eventually cook.
• Higher continuous output is available on units that support it, because hardwiring is not limited by the receptacle rating.
• It can go outdoors without the extra weatherproofing a receptacle needs.

The trade is that you cannot unplug it and take it with you. For a charger mounted on the garage wall of a house somebody plans to stay in, that is not much of a trade.

Why the whip is short and flexible

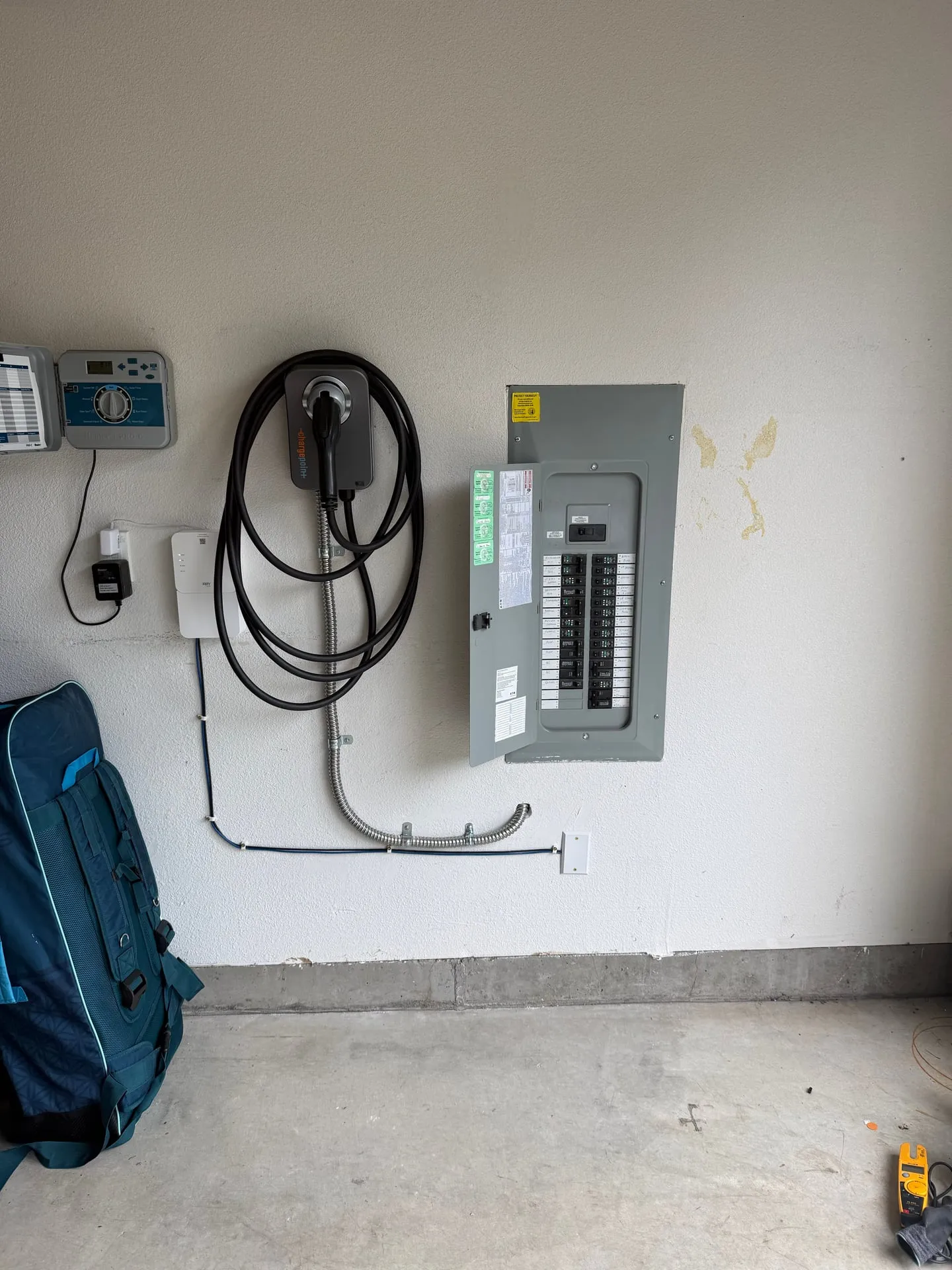

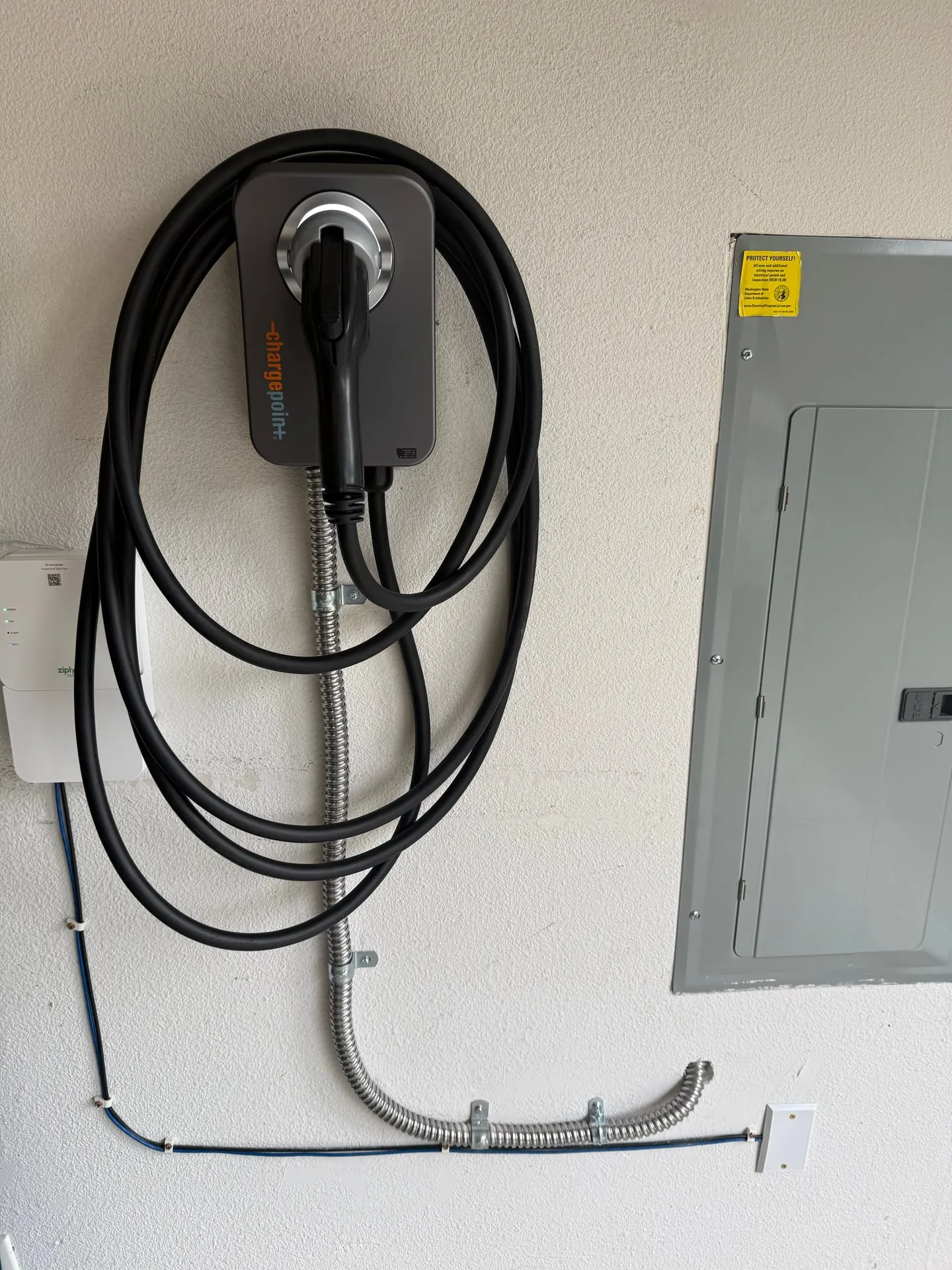

The photo shows a short length of flexible conduit between the panel and the charger rather than a rigid run.

That is deliberate. The charger is a fixed piece of equipment on a finished wall, and a flexible whip lets the unit be removed or replaced without disturbing the raceway. It also handles the slight misalignment between where the panel knockout is and where the charger’s entry sits, which on a rigid run means fabricating a fitting to solve a problem that does not need solving.

Buying an EV and hoping the install is the easy kind? Call 360-828-7143 or send us a photo of your panel and we will tell you which of the three questions goes against you.
