Panel Swap and Heat Pump Hookup for an A/C Replacement in Vancouver, WA

Advantage Heating & Cooling was replacing an A/C and air handler with a Daikin heat pump and a new air handler at this east Vancouver home. The original panel was the weak link, so Newman Electric swapped it on the morning of the install and had both new units reconnected the same day.

Why the panel came out first

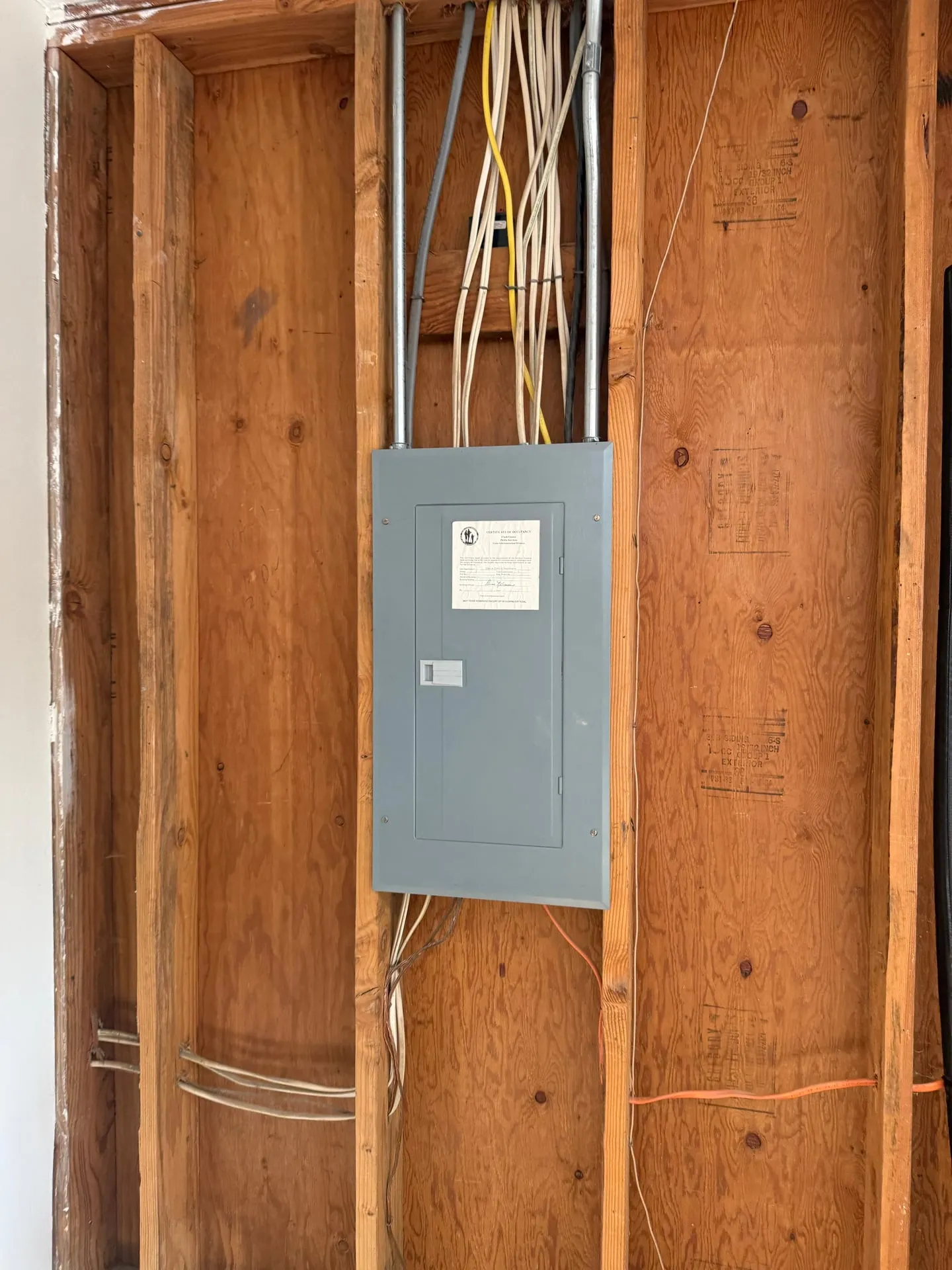

The original load center still carried the certificate of occupancy sticker from when the house was built. Rather than hang a brand-new inverter heat pump off it, the job included a like-in-kind panel swap: a new 200-amp Siemens panel in the same stud bay, every circuit re-landed, and the service re-grounded and bonded while everything was open. It’s the most common way a heat pump circuit turns into a panel job. Our heat pump and mini split electrical guide covers when that happens and when it doesn’t.

Protecting the new equipment

Modern heat pumps run on variable-speed inverter boards that don’t tolerate surges well. This setup protects them twice:

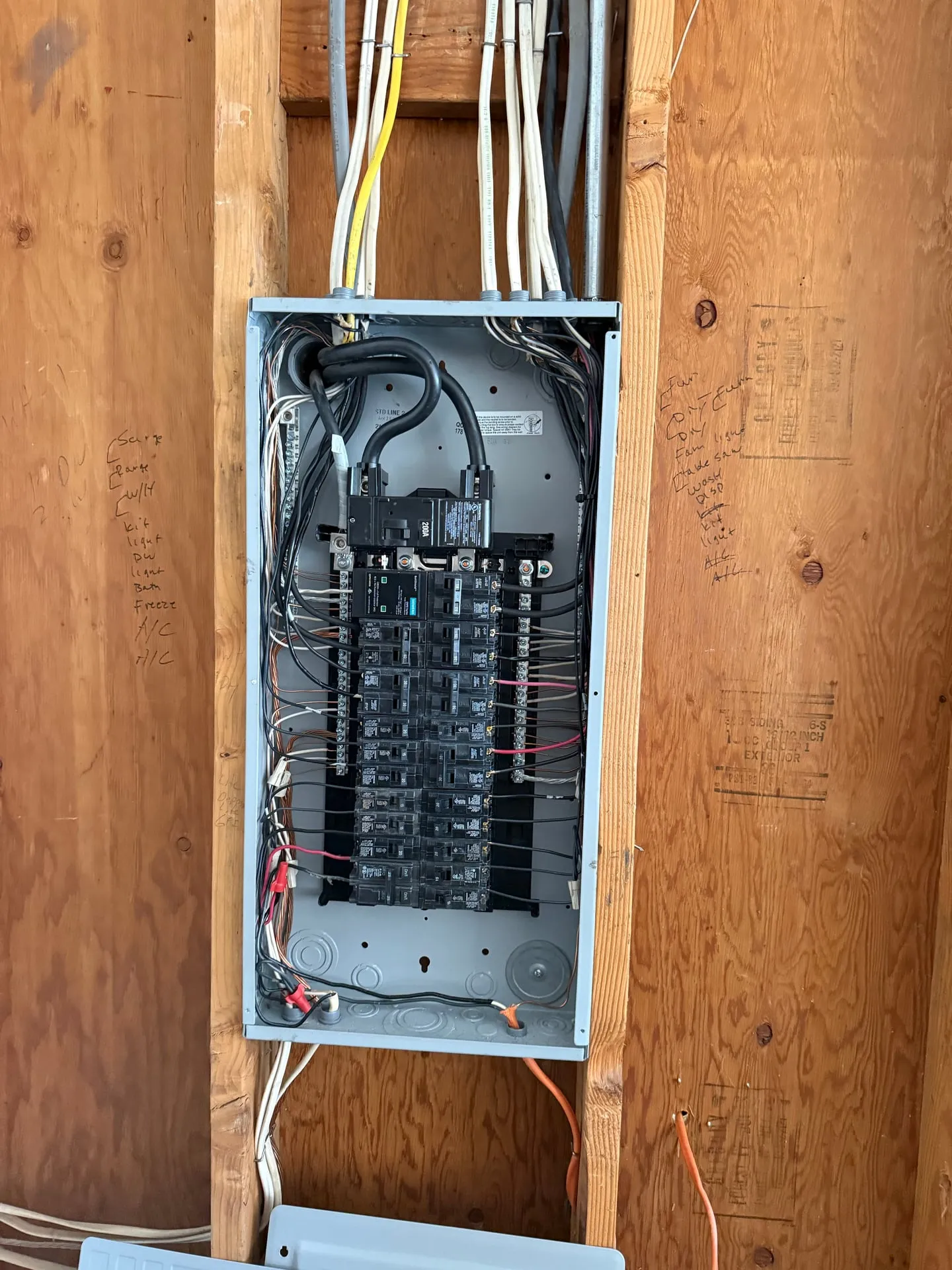

• A whole-house surge protector at the new panel, sitting right under the main breaker.

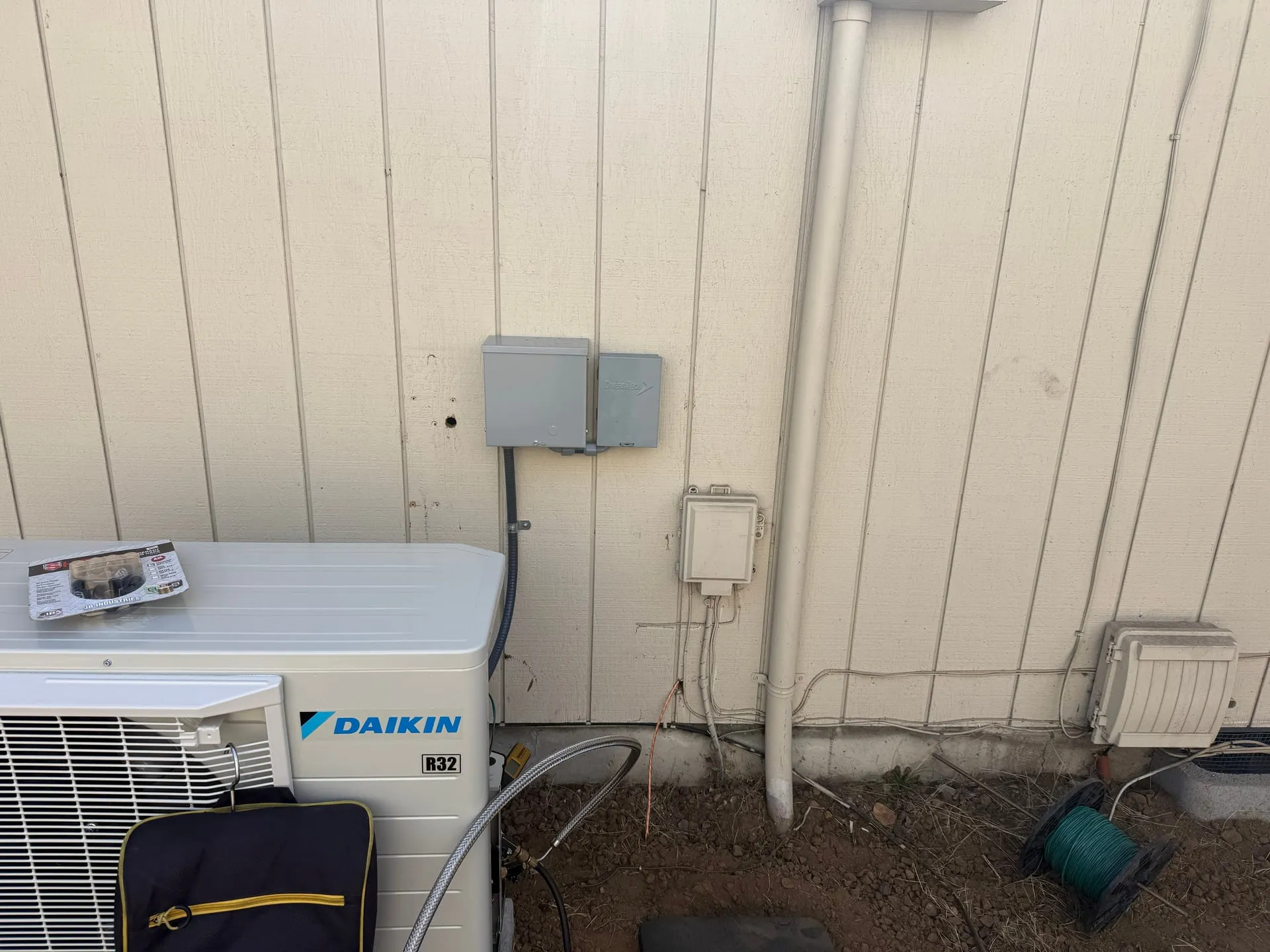

• A surge protector at the outdoor unit, supplied by Advantage, mounted beside the disconnect.

The outdoor disconnect sits within sight of the unit, with flexible conduit down to the Daikin, as the code requires.

The small stuff that keeps a system running

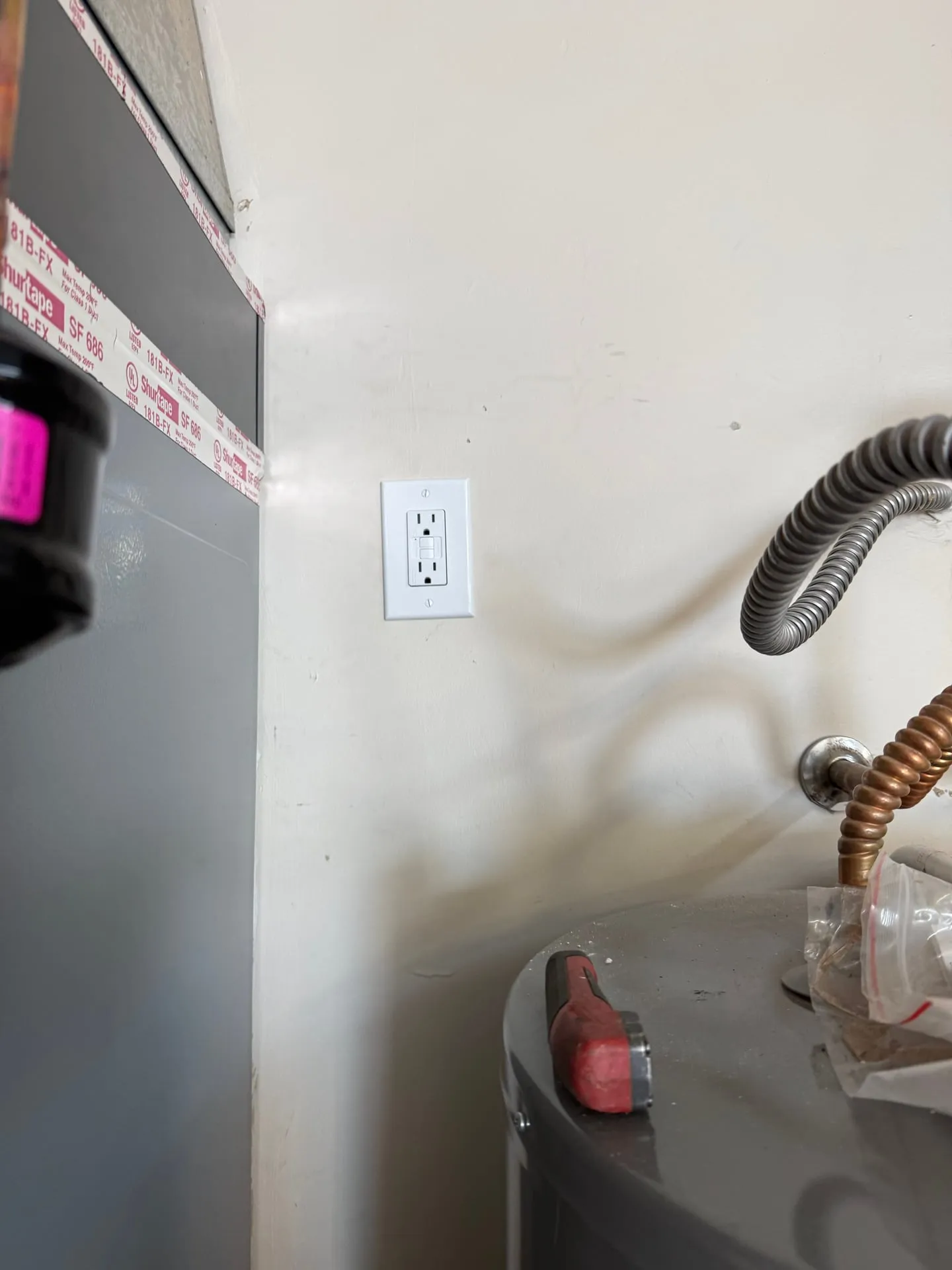

A new high-efficiency system makes condensate, and the pump that moves it needs power. We added a dedicated GFCI outlet for the condensate pump beside the air handler instead of leaving it on an extension cord.

The permit went through the City of Vancouver. For other examples of this kind of partner work, see our heat pump wiring in Vancouver section. If you’re replacing HVAC equipment and aren’t sure your panel can keep up, call 360-828-7143 or have us check the panel before the install.
